1
Engine displacement
125
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo ST
5
Parts Catalog

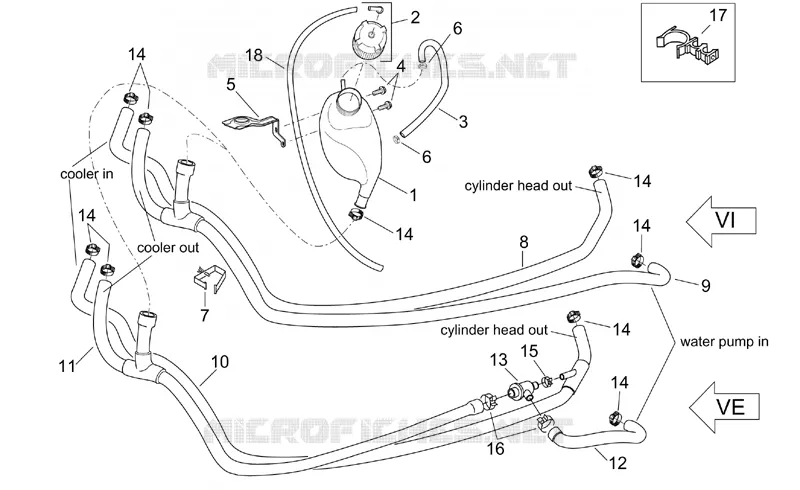

Expansion tank - Pipes
6
Parts Diagram
Parts Catalog
Water cooler
by
Tank
Expansion tank - Pipes
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
14
14
14
14
14
15
16
17
18
1
Expansion tank
AP8138946
$45,45 Unit Price incl. VAT
2
Rad cap w/ vent
AP8201463
Not Available
3
Breather pipe
AP8144056
Not Available
4
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
5
Water cooler upper support
AP8134453
Not Available
6
Hose clamp 12,5x8
AP8102239
$0,84 Unit Price incl. VAT
7
Water tubes holder
AP8134460
$5,38 Unit Price incl. VAT
8
Water cooler-head tube
AP8144079
Not Available
9
Water cooler-pump tube
AP8144080
Not Available
10
Water cooler-head tube
AP8144098
$27,32 Unit Price incl. VAT
11
Water cooler-pump tube
AP8144099
$29,57 Unit Price incl. VAT
12
Motor-pump valve tube
AP8144100
$5,21 Unit Price incl. VAT
13
Thermostat valve set
AP8102614
$67,34 Unit Price incl. VAT
14
Hose clamp 17-25
AP8102732
$3,65 Unit Price incl. VAT
15
Hose clamp D16-24x8*
AP8101573
$3,65 Unit Price incl. VAT
16
Hose clip D25x35
AP8102810
Not Available
17
Cable-guide D22
AP8201807
$5,38 Unit Price incl. VAT
18
pipe 5x9
AP8220402
$4,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
