1
Engine displacement
125
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo ST
5
Parts Catalog

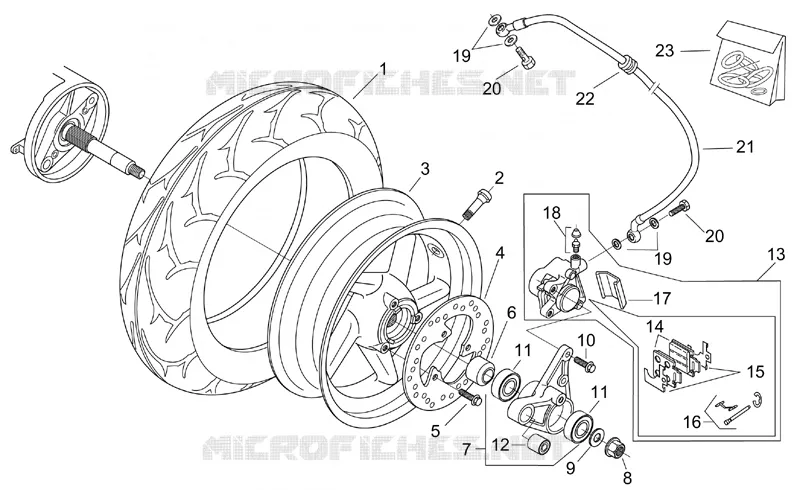

Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Lights
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
1
Tyre
0000000
Not Available
2
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
3
Rear wheel
AP8108917
Not Available
3
Rear wheel, gold
AP8128028
Not Available
4
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
5
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
6
Rear wheel spacer
AP8125726
$18,12 Unit Price incl. VAT
7
Brake hanger plate cpl.
AP8134308
Not Available
8
DAX flange nut M14x1,5
AP8152244
$4,36 Unit Price incl. VAT
9
Spring washer 14,5x24
AP8150471
$3,70 Unit Price incl. VAT
10
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
11
Ball bearing
AP8110083
Not Available
12
Silent-block
AP8120970
Not Available
13
Rear brake caliper D30
AP8113848
$681,00 Unit Price incl. VAT
14
Rear pads pair
AP8213462
Not Available
15
F.antiwhistle plate-pair
AP8113677
$8,91 Unit Price incl. VAT
16
Pin+Brake spring
AP8213461
$9,18 Unit Price incl. VAT
17
Brake caliper cover
AP8213224
$5,38 Unit Price incl. VAT
18
Bleeder+cap
AP8113321
$16,91 Unit Price incl. VAT
19
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
20
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
21
Rear brake hose
AP8113704
$98,82 Unit Price incl. VAT
22
Cable-guide
AP8121856
$3,65 Unit Price incl. VAT
23
Brake caliper rev. kit
AP8213457
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
