1
Engine displacement
125
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo ST
5
Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Starter motor
by
Speed variator w/ clutch

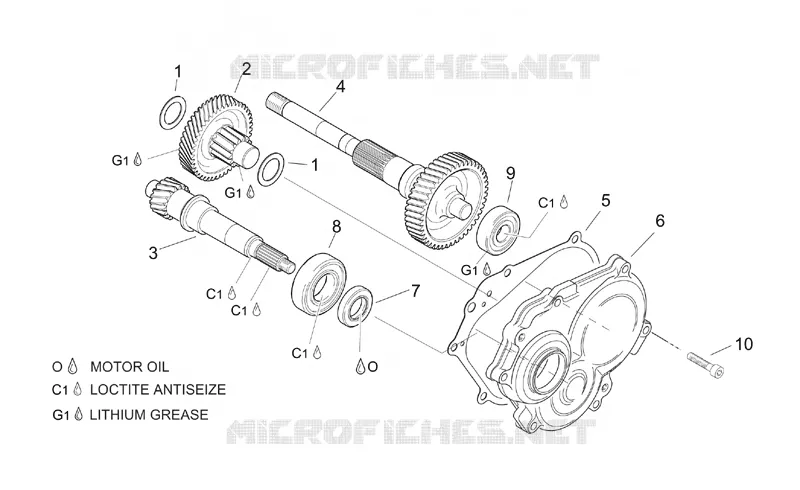

Transmission
1
1
2
3
4
5
6
7
8
9
10
1
Thrust washer
AP0944468
Not Available
2
Intermediate shaft
AP0220327
Not Available
3
Drive shaft Z=17
AP0220342
Not Available
4
Drive shaft assy Z=56
AP0220335
Not Available
5
Gasket
AP0650202
Not Available
6
Transmission cover
AP0211495
Not Available
7
Oil seal 20x35x7
AP0930267
Not Available
8
Bearing 6205
AP0232763
Not Available
9
Bearing 6302
AP0232291
Not Available
10
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
