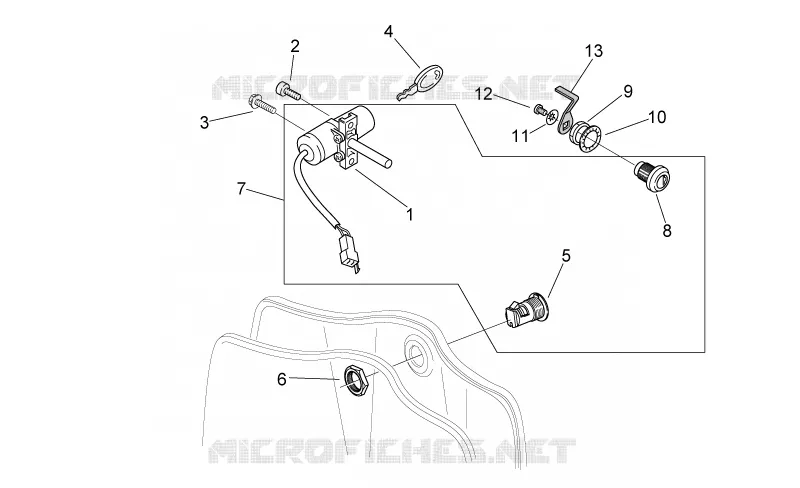

Lock hardware kit
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Main switch - steering lock
AP8224081
Not Available
2
Shear rivet M6x17
AP8152140
$3,65 Unit Price incl. VAT
3
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
4
Aprilia milled key
AP8102880
Not Available
5
Front box lock
AP8201734
Not Available
6
Lock nut M22x1,5
AP8102523
$8,01 Unit Price incl. VAT
7
Lock kit
AP8202149
Not Available
8
Top box lock
AP8202169
$26,65 Unit Price incl. VAT
9
Low nut M19x1*
AP8152194
$1,10 Unit Price incl. VAT
10
Nickel plated lock washer *
AP8201305
Not Available
11
Washer
AP8201748
$0,14 Unit Price incl. VAT
12
Screw M4x6
AP8201749
$0,16 Unit Price incl. VAT
13
Saddle lockup lever
AP8202295
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
