Central stand - Connecting rod FOR Mojito E3 FROM 2008

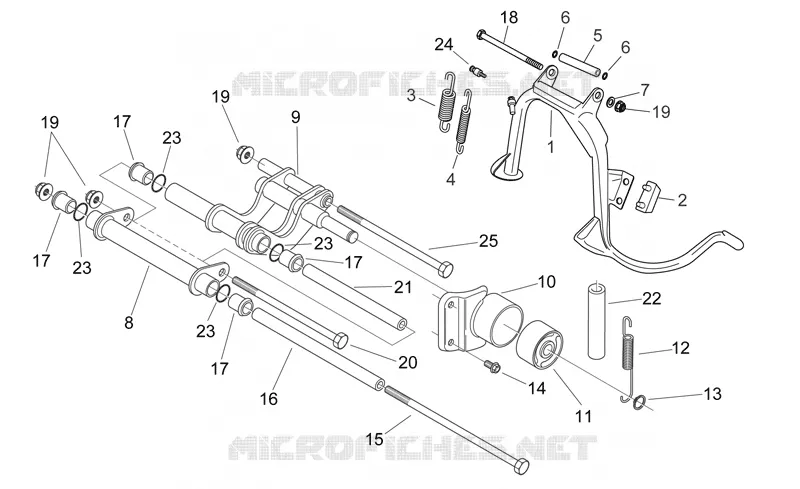

Central stand - Connecting rod

1

Central stand

AP8146538

$77,31 Unit Price incl. VAT

2

Stand end stop

AP8144578

Not Available

3

Lateral stand spring

AP8163207

Not Available

4

Internal lateral stand spring

AP8163206

Not Available

5

Central stand spacer

AP8121617

Not Available

6

Gasket ring

AP8121638

Not Available

7

Washer 10,5x21x2*

AP8150020

$0,08 Unit Price incl. VAT

8

Engine connecting element

AP8146237

Not Available

9

Frame coupling rod

852862

Not Available

10

Silent-block supp.plate

AP8234186

Not Available

11

Silent-block

AP8220703

$24,90 Unit Price incl. VAT

12

Connecting rod support spring

AP8125816

$17,83 Unit Price incl. VAT

13

Circlip

AP8125815

Not Available

14

Screw w/ flange M8x20

AP8152286

$0,25 Unit Price incl. VAT

15

Pin M10x260

AP8121367

$6,60 Unit Price incl. VAT

16

Connecting rod spacer

AP8121397

$36,93 Unit Price incl. VAT

17

Rod bush

AP8121398

$3,65 Unit Price incl. VAT

18

Hex socket screw M10x130

AP8150438

$3,65 Unit Price incl. VAT

19

Self-locking nut

AP8152301

$0,59 Unit Price incl. VAT

20

Screw

AP8150412

$3,70 Unit Price incl. VAT

21

Connecting rod spacer

AP8121396

$12,36 Unit Price incl. VAT

22

Spring protection

AP8104147

Not Available

23

O-ring 4087

AP8120280

$3,65 Unit Price incl. VAT

24

Spring coupling screw

AP8580073

Not Available

25

screw

597081

$5,20 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
