Rear wheel FOR Mojito E3 FROM 2008

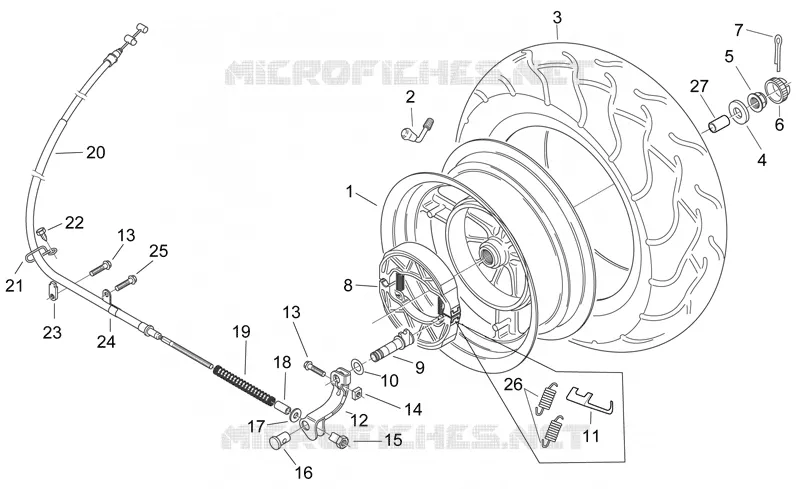

Rear wheel

1

Rear wheel

AP8108817

Not Available

2

Tubeless tyre valve

AP8201546

$5,38 Unit Price incl. VAT

3

Rear tyre 130/70-12"

AP8109245

Not Available

4

Ring

AP8125803

Not Available

5

Rear wheel nut

AP8550307

Not Available

6

Cap

AP8550261

$5,38 Unit Price incl. VAT

7

Split pin

AP8121431

$3,65 Unit Price incl. VAT

8

Brake shoes+springs

AP8550360

Not Available

9

Rear brake cam

AP8540033

Not Available

10

Gasket ring

AP8540032

Not Available

11

Plate

AP8550145

Not Available

12

Rear brake lever

AP8540034

Not Available

13

Screw w/ flange M6x30

AP8550558

$3,65 Unit Price incl. VAT

14

Square nut

AP8225373

Not Available

15

Rear brake lever register

AP8101103

$5,38 Unit Price incl. VAT

16

Brake cable retainer

AP8221120

$5,38 Unit Price incl. VAT

17

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

18

Spacer 6,5x10x19*

AP8121020

$3,65 Unit Price incl. VAT

19

Coil compress. spring *

AP8213137

$5,38 Unit Price incl. VAT

20

Rear brake cable

AP8114398

Not Available

21

Cable-guide

AP8121856

$3,65 Unit Price incl. VAT

22

Self-locking TE screw 4,8x12

AP8152088

$0,05 Unit Price incl. VAT

23

Plate

AP8550017

Not Available

24

Hose clamp

AP8550402

Not Available

25

screw M6x35

AP8550079

Not Available

26

Brake shoes return spring

AP8550144

Not Available

27

Rear wheel spacer

AP8125892

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
