Rear body - Plate holder FOR Mojito E3 FROM 2008

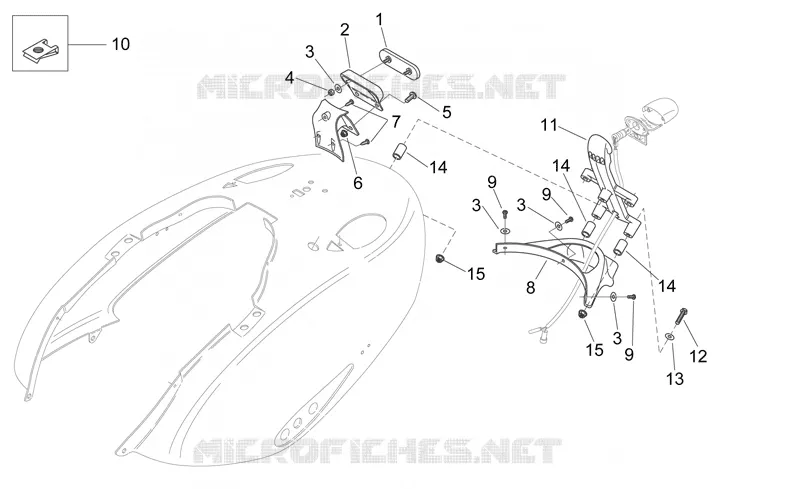

Rear body - Plate holder

1

Rear reflector, red

AP8124718

$4,12 Unit Price incl. VAT

2

Reflector support

AP8134607

$5,38 Unit Price incl. VAT

3

Washer 4,3x12x1

AP8150011

$0,25 Unit Price incl. VAT

4

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

5

Screw w/ flange M5x16

AP8152298

$0,21 Unit Price incl. VAT

6

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

7

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

8

Rear splash guard

AP8178109

$6,30 Unit Price incl. VAT

9

Screw

AP8150359

$3,65 Unit Price incl. VAT

10

Clip M4

AP8102381

$1,09 Unit Price incl. VAT

11

Number plate holder support

AP8126747

Not Available

12

Hex socket screw M6x25

AP8150165

$3,65 Unit Price incl. VAT

13

Washer 6,4x12,5*

AP8150014

$3,70 Unit Price incl. VAT

14

T bush

AP8121811

$3,38 Unit Price incl. VAT

15

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
