Front shock absorber FOR Mojito E3 FROM 2008

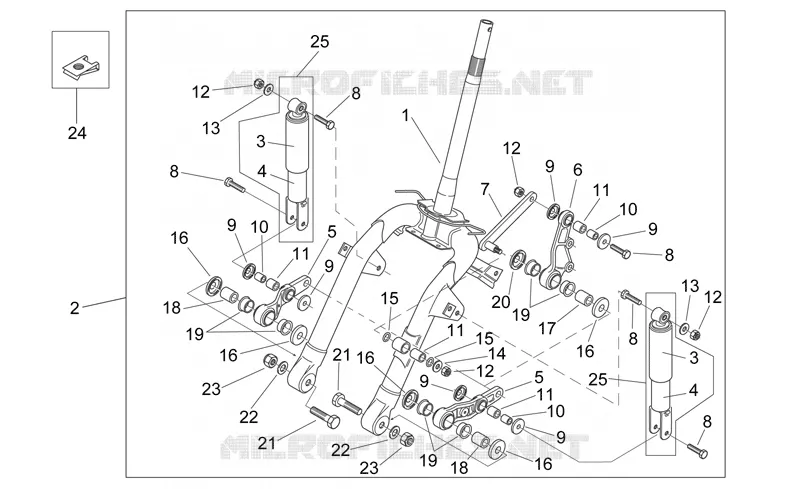

Front shock absorber

1

Front fork

AP8163376

Not Available

2

Front fork

AP8163284

Not Available

3

Upper shock absorber cover

AP8248182

Not Available

4

Lower shock absorber cover

AP8248183

Not Available

5

Connecting rod

AP8203970

Not Available

6

Brake caliper plate

AP8234176

Not Available

7

plate

AP8203971

$26,74 Unit Price incl. VAT

8

Hex screw M8x35

AP8201602

Not Available

9

Cup D20

AP8203521

$3,65 Unit Price incl. VAT

10

Bush

AP8203536

Not Available

11

Nylon bush

AP8203523

Not Available

12

Low nut M8

AP8150431

$0,34 Unit Price incl. VAT

13

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

14

Special washer

AP8203542

Not Available

15

O-ring 115

AP8220177

$0,15 Unit Price incl. VAT

16

Cup

AP8203520

Not Available

17

Bush

AP8203524

Not Available

18

Bush

AP8203538

$6,60 Unit Price incl. VAT

19

Nylon bush

AP8203522

Not Available

20

Cup D28

AP8203519

$22,29 Unit Price incl. VAT

21

Screw m12x50

AP8203972

Not Available

22

Washer 13x24x2,5*

AP8150101

$3,65 Unit Price incl. VAT

23

Low self-locking nut M12*

AP8150432

$3,65 Unit Price incl. VAT

24

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

25

Fork shock absorber

AP8123881

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
