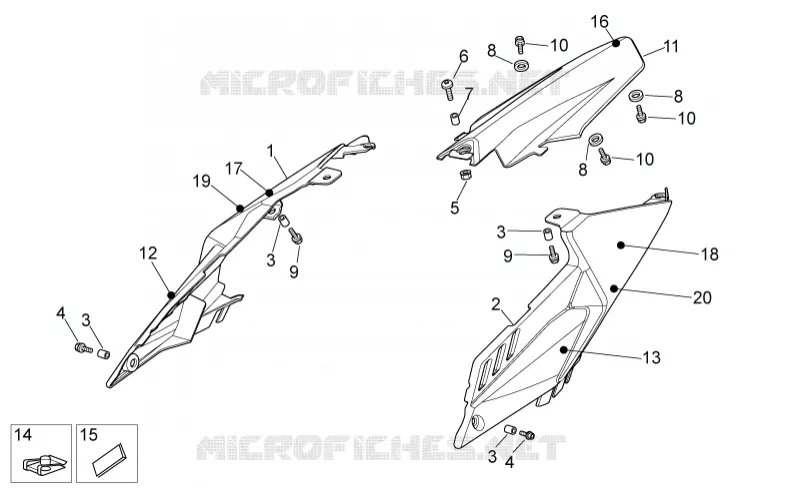

Rear body
20
19
18
17
16
15
14
13
12
11
10
10
10
9
9
8
8
8
7
6
5
4
4
3
3
3
3
2
1
1
Rh rear fairing
85590200XR3
Not Available
2
Lh rear fairing
85590100XR3
Not Available
3
Bush d.10-h.3,5
AP9100053
$1,70 Unit Price incl. VAT
4
Screw w/ flange M6x16 inox
AP9100645
$2,95 Unit Price incl. VAT
5
Self-locking nut M6x1
AP9100434
$29,76 Unit Price incl. VAT
6
Vite TBEI M6x25
AP8152117
$0,25 Unit Price incl. VAT
7
Bush 10x7
AP9100594
$3,65 Unit Price incl. VAT
8
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
9
Screw w/ flange
598839
$0,09 Unit Price incl. VAT
10
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
11
Rear mudguard
89100200XR3
Not Available
12
RH rear fairing decal
890697
$4,82 Unit Price incl. VAT
12
RH rear fairing decal
899087
Not Available
13
LH rear fairing decal
899088
$6,38 Unit Price incl. VAT
13
LH rear fairing decal
890698
$4,82 Unit Price incl. VAT
14
Spring plate M6
254485
$0,34 Unit Price incl. VAT
15
Heat protection
858545
$5,00 Unit Price incl. VAT
16
Decal "APRILIA"
890699
$7,23 Unit Price incl. VAT
17
Dec.triangle Rear fairing dx
899114
$10,35 Unit Price incl. VAT
18
Dec.triangle Rear fairing sx
899115
$10,35 Unit Price incl. VAT
19
RH rear fairing decal
899089
$9,50 Unit Price incl. VAT
20
LH rear fairing decal
899090
$9,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
