Front body I FOR MXV Cross FROM 2010

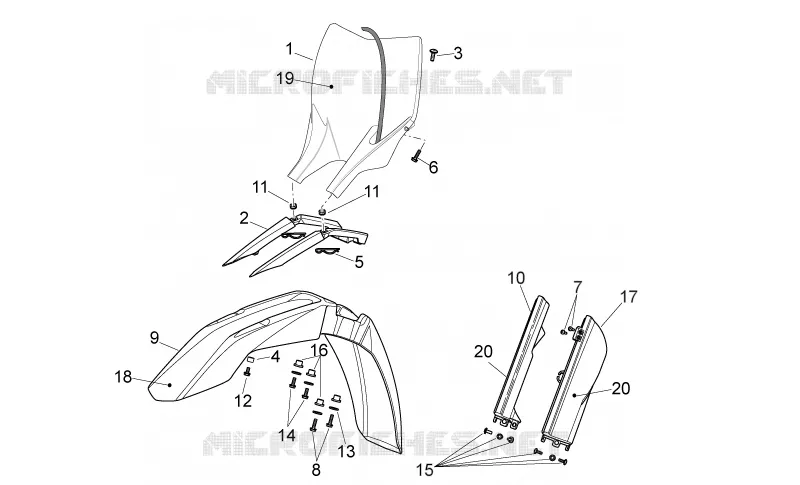

Front body I

1

Number plate

AP8184813

Not Available

2

Tie rod

AP8156344

$24,90 Unit Price incl. VAT

3

Screw w/ flange M5x9

AP8152339

$3,65 Unit Price incl. VAT

4

Bush d.10-h.3,5

AP9100053

$1,70 Unit Price incl. VAT

5

Split pin *

AP8201431

$5,38 Unit Price incl. VAT

6

Special cap screw T autof. 4,2x13

AP9100633

$3,65 Unit Price incl. VAT

7

Screw

AP8150246

$3,65 Unit Price incl. VAT

8

Screw w/ flange

AP8152284

$3,65 Unit Price incl. VAT

9

Front mudguard, red

AP8156343

$117,28 Unit Price incl. VAT

10

RH sleeve guard, black

AP9100441

Not Available

11

Rubber spacer

AP8120405

$5,38 Unit Price incl. VAT

12

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

13

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

14

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

15

Screw complete M6x1

AP9100548

$2,25 Unit Price incl. VAT

16

T bush 20x0,5x3,5

AP9100501

Not Available

17

LH sleeve guard, black

AP9100440

Not Available

18

Front mudguard decal

890575

$14,18 Unit Price incl. VAT

19

Numberplate

890691

Not Available

20

Decal "AGIP APRILIA"

852038

$4,82 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
