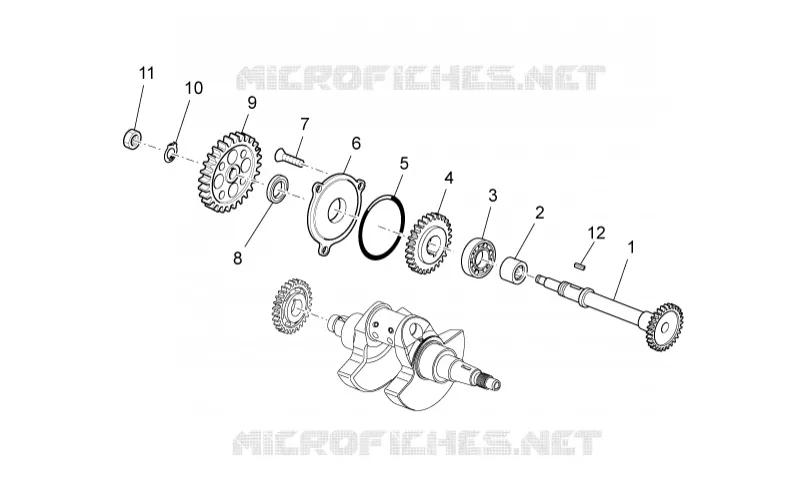

Transmission shaft
12
11
10
9
8
7
6
5
4
3
2
1
1
Transmission shaft Z=21
851008
$111,13 Unit Price incl. VAT
2
Bearing D14x22x13
85106R
$19,17 Unit Price incl. VAT
3
Ball bearing D12x28x8
AP9150387
$9,18 Unit Price incl. VAT
4
Timing gear Z=21
AP9150130
$28,44 Unit Price incl. VAT
5
O-ring D79x1,78
AP9150348
$5,38 Unit Price incl. VAT
6
Flange
AP9150483
$12,45 Unit Price incl. VAT
7
Hex socket screw
844211
Not Available
8
Oil seal D28x20x6
AP9150390
$6,60 Unit Price incl. VAT
9
Timing gear Z=46
AP9150290
Not Available
10
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
11
Nut M12x1x4,5
851011
$3,65 Unit Price incl. VAT
12
Transmission key 4x4x18
AP9150389
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
