Front brake system FOR MXV Cross FROM 2010

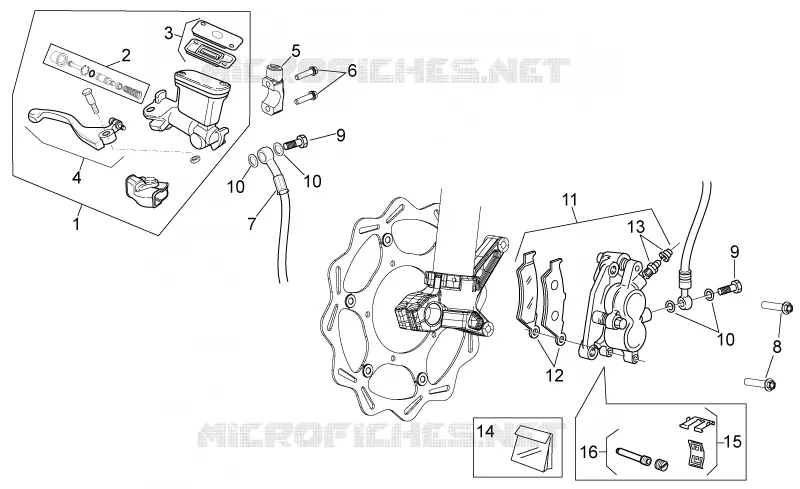

Front brake system

1

Front master cilinder Nissin

AP9100257

$122,50 Unit Price incl. VAT

2

Piston, kit

AP9100785

Not Available

3

Plug revision kit

AP9100786

$16,91 Unit Price incl. VAT

4

Lever overhaul kit

AP9100787

$49,28 Unit Price incl. VAT

5

Collar

AP9100706

$4,82 Unit Price incl. VAT

6

Screw w/ flange M6x25

AP8152280

$0,25 Unit Price incl. VAT

7

Front brake hose

855755

$56,28 Unit Price incl. VAT

8

Screw w/ flange M8x40

AP8152290

$3,65 Unit Price incl. VAT

9

Hex screw M10x1,25

AP9100472

$3,65 Unit Price incl. VAT

10

Washer 14x10,2x1

AP9100473

$5,38 Unit Price incl. VAT

11

Front brake caliper

AP9100256

Not Available

12

Pads pair

AP9100788

Not Available

13

Bleeder kit

AP9100789

Not Available

14

Brake caliper rev. kit

AP9100790

Not Available

15

Spring

AP9100791

Not Available

16

Pin

AP9100792

$5,38 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
