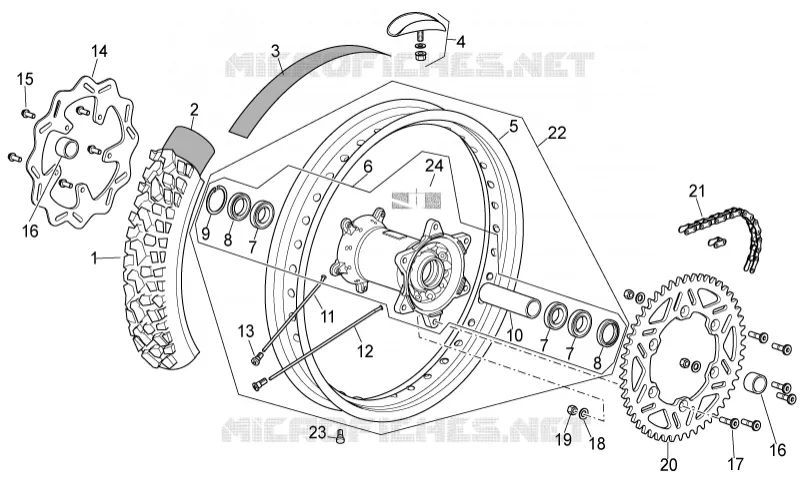

Rear wheel FOR MXV Cross FROM 2010

Rear wheel

1

Rear tyre 110/90-19"

855744

Not Available

2

Inner tube 19"

855746

Not Available

3

Rear wheel flap

AP8109144

$22,29 Unit Price incl. VAT

4

Tyre clamp

AP9100462

Not Available

5

Rear wheel 2,15X19"

855613

Not Available

6

Rear hub

AP9100214

$372,87 Unit Price incl. VAT

7

Ball bearing 25x42x9

AP9100216

Not Available

8

Gasket ring 32x42x7

AP9100227

Not Available

9

Circlip D.42

AP8121334

$3,65 Unit Price incl. VAT

10

Internal spacer L=106,5 mm

AP9100215

Not Available

11

Spoke d.4-19"-l.20

AP9100413

Not Available

12

Spoke d.4-19"-l.2

AP9100212

Not Available

13

Nipple d.4

AP9100213

$5,38 Unit Price incl. VAT

14

Rear brake disc d.240

855748

Not Available

15

Screw w/ flange

855625

$3,65 Unit Price incl. VAT

16

Outside spacer L=21,9

AP9100595

$17,01 Unit Price incl. VAT

17

Screw M8x30

855626

$3,65 Unit Price incl. VAT

18

Washer

AP8150009

$3,65 Unit Price incl. VAT

19

Low self-locking nut M8x1,25

AP9100432

$3,65 Unit Price incl. VAT

20

Chain ring Z=49

CM238206

Not Available

21

Chain 5/8"x1/4"

855161

Not Available

22

Rear wheel 19"

891013

Not Available

23

Rubber spacer

AP8120001

$0,77 Unit Price incl. VAT

24

Spacer

AP9100318

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
