1
Engine displacement
180
2
Model
QUASAR
3
Year
2004
4
Trim
Quasar
5
Parts Catalog
Handlebar
6
Parts Diagram
Parts Catalog
Rear brake
by
Rear axle

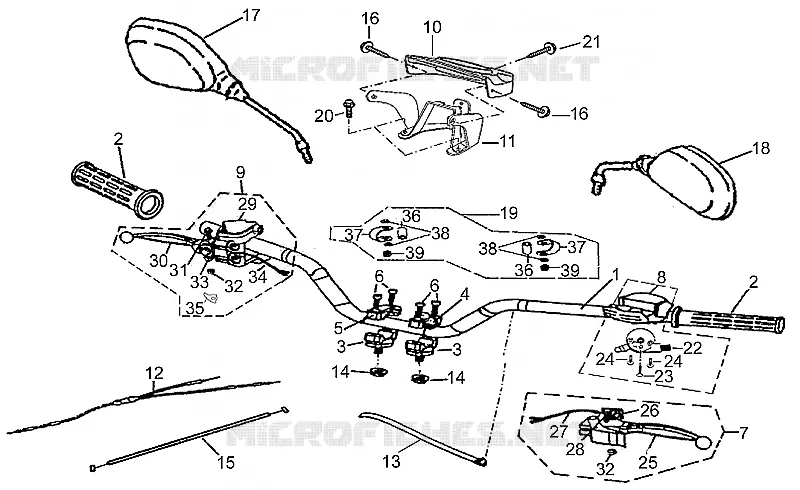

Handlebar
1
2
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
32
33
34
35
36
36
37
37
38
38
39
39
1
Handlebar cpl.
AP8911334
Not Available
2
Handgrips
AP8911332
Not Available
3
Lower U-bolt
AP8910280
Not Available
4
U-bolt A
AP8910281
Not Available
5
U-bolt B
AP8910282
Not Available
6
Hex socket screw M6x25
AP8910333
Not Available
7
LH brake lever cpl.
AP8911350
Not Available
8
LH lights selector
AP8911354
Not Available
8
LH lights selector
AP8911353
Not Available
9
RH brake lever cpl.
AP8911414
Not Available
9
RH brake lever cpl.
AP8911413
Not Available
10
Handlebar cover
AP8911333
Not Available
11
Instrum.holder frame
AP8911342
Not Available
12
Throttle cable
AP8911474
Not Available
13
Hose clamp
AP8911021
Not Available
14
Nut
AP8910314
Not Available
15
Choke cable
AP8911264
Not Available
16
Screw w/ flange
AP8910585
Not Available
17
RH rearview mirror
AP8911418
Not Available
18
LH rearview mirror
AP8911355
Not Available
19
Mirror mounting clump
AP8911364
Not Available
20
Screw w/ flange M6x14
AP8911440
Not Available
20
Screw w/ flange M6x12
AP8910426
Not Available
21
Screw w/ flange M6x12
AP8910426
Not Available
21
Screw w/ flange
AP8910354
Not Available
22
Choke control
AP8911265
Not Available
23
Self-tap screw
AP8911445
Not Available
24
Self-tap screw
AP8911446
Not Available
25
LH brake lever
AP8910278
Not Available
26
Maintenance
AP8910529
Not Available
27
Stop switch
AP8910275
Not Available
28
Hex screw M6x23
AP8910305
Not Available
29
Throttle
AP8910277
Not Available
30
RH brake lever
AP8910276
Not Available
31
Hex screw M6x23
AP8910304
Not Available
32
Nut M6
AP8910311
Not Available
33
Nipple
AP8910551
Not Available
34
Rh.Brake light switch
AP8910540
Not Available
35
Lock plate
AP8911357
Not Available
36
Spacer
AP8911205
Not Available
37
Maintenance
AP8911206
Not Available
38
Plain washer 8,3x13x1
AP8911391
Not Available
39
Self-locking nut M8
AP8910313
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
