Engine displacement
180
2
Model
QUASAR
3
Year
2004
4
Trim
Quasar
5
Parts Catalog
Decal set-Use+maintenance book
6
Parts Diagram
Parts Catalog
Electrical system
by
Decal set-Use+maintenance book
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
9
10
10
11
11
11
11
12
12
13
13
14
14
14
15
15
18
19
20
21
1
Decal Aprilia
AP8277512
Not Available
1
Decal Aprilia
AP8277511
Not Available
2
Front RH decal Aprilia
AP8277508
Not Available
2
Front RH decal Aprilia
AP8277507
Not Available
3
Front LH decal Aprilia
AP8277505
Not Available
3
Front LH decal Aprilia
AP8277506
Not Available
4
Rear RH decal
AP8911507
Not Available
4
Rear RH decal
AP8911508
Not Available
5
Rear LH decal
AP8911506
Not Available
5
Rear LH decal
AP8911505
Not Available
6
Rear RH decal
AP8911510
Not Available
6
Rear RH decal
AP8911509
Not Available
7
Rear LH decal
AP8911503
Not Available
7
Rear LH decal
AP8911502
Not Available
8
Decal Aprilia
AP8277510
Not Available
9
Decal Warning
AP8911287
Not Available
10
Decal Warning
AP8911281
Not Available
11
Decal Warning
AP8911282
Not Available
12
Gearshift decal
AP8911493
Not Available
13
Decal VIN code
AP8911283
Not Available
14
Light decal set
AP8911496
Not Available
14
RH light decal set
AP8911511
Not Available
15
Decal Warning
AP8911285
Not Available
15
LH light decal set
AP8911504
Not Available
18
Decal ant.
AP8911497
Not Available
19
Front LH decal
AP8911494
Not Available
20
Front LH decal
AP8911495
Not Available
21
Operator's handbook
AP8202427
Not Available

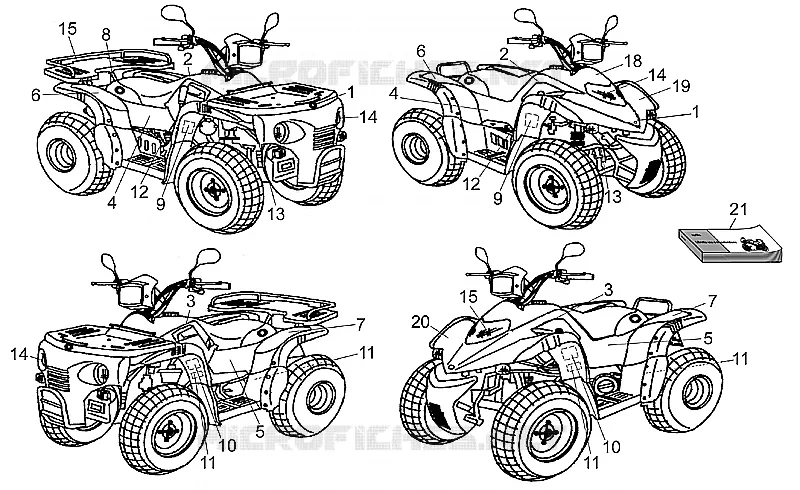

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
