Engine displacement
180
2
Model
QUASAR
3
Year
2004
4
Trim
Quasar
5
Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Speed variator w/ clutch
by
Crankcase
Transmission
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
43
44
45
45
45
46
46
46
47
48
49
50
51
52
53
54
55
56
57
1
Transmission cover
AP8911478
Not Available
2
Cover gasket
AP8910769
Not Available
3
Drive shaft
AP8910798
Not Available
4
Double gear
AP8910799
Not Available
5
Transmission
AP8911477
Not Available
6
Intermediate gear
AP8910801
Not Available
7
Bearing CS05 6203
AP8911115
Not Available
8
Bearing C3 6204
AP8911116
Not Available
9
Bearing CS05 6202
AP8911114
Not Available
10
Bearing TMB301
AP8911118
Not Available
11
Bearing
AP8911250
Not Available
12
Oil seal
AP8911372
Not Available
13
Silent-block 8x22x23
AP8911127
Not Available
14
Pin 8x14
AP8911071
Not Available
15
Pinion 17T
AP8911383
Not Available
16
Fixing plate
AP8911296
Not Available
17
Hex screw
AP8911337
Not Available
18
Screw w/ flange M6x25
AP8910431
Not Available
19
Screw w/ flange M6x12
AP8911521
Not Available
20
Selector
AP8911217
Not Available
21
Gear cpl.
AP8910753
Not Available
22
Gearbox linkage rod
AP8910756
Not Available
23
Plate
AP8910757
Not Available
24
Gearbox selector
AP8910758
Not Available
25
screw
AP8911425
Not Available
26
Knob, cpl.
AP8911491
Not Available
27
Gear
AP8911328
Not Available
28
Fork
AP8911218
Not Available
29
Pin
AP8910761
Not Available
30
Screw w/ flange M6x12
AP8911083
Not Available
31
Nut M6
AP8910311
Not Available
32
Hex socket screw M6x25
AP8910333
Not Available
33
Oil seal 20x32x6
AP8911135
Not Available
34
Gear lever
AP8911330
Not Available
35
Spring
AP8911459
Not Available
36
Pin
AP8910764
Not Available
37
Plain washer 8x16x1,5
AP8910385
Not Available
38
Split pin
AP8910404
Not Available
39
Self-locking nut M8
AP8910313
Not Available
40
O-ring
AP8911176
Not Available
41
Plain washer 5x10x1
AP8910561
Not Available
42
Drive shaft d.25
AP8911394
Not Available
43
Reversal gear
AP8911411
Not Available
44
Clutch
AP8911267
Not Available
45
C-ring
AP8911273
Not Available
46
Special washer
AP8911454
Not Available
47
Fixing pin
AP8910754
Not Available
48
Gearbox linkage rod
AP8910755
Not Available
49
Special washer
AP8910805
Not Available
50
Stop ring
AP8910806
Not Available
51
Pin
AP8910767
Not Available
52
Spring
AP8910768
Not Available
53
Knob
AP8911346
Not Available
54
Cover
AP8911492
Not Available
55
Screw w/ flange M6x16
AP8910427
Not Available
56
Breather pipe 5x7
AP8911255
Not Available
57
Breather pipe union
AP8910083
Not Available

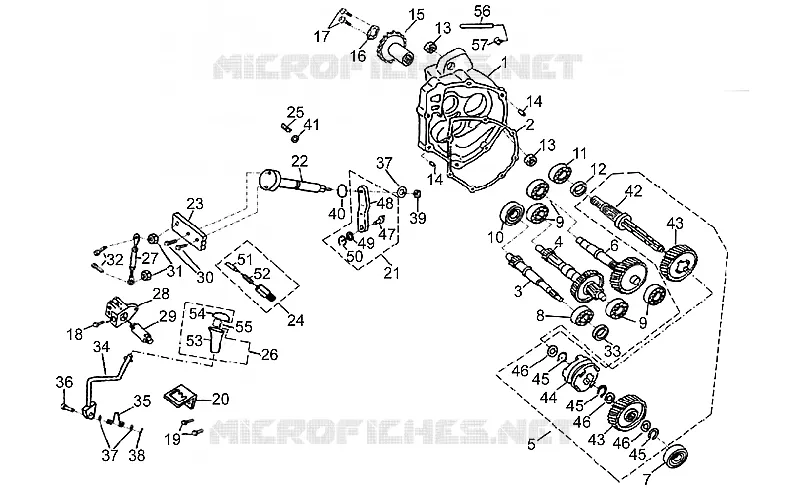

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
