1
Engine displacement
180
2
Model
QUASAR
3
Year
2004
4
Trim
Quasar
5
Parts Catalog

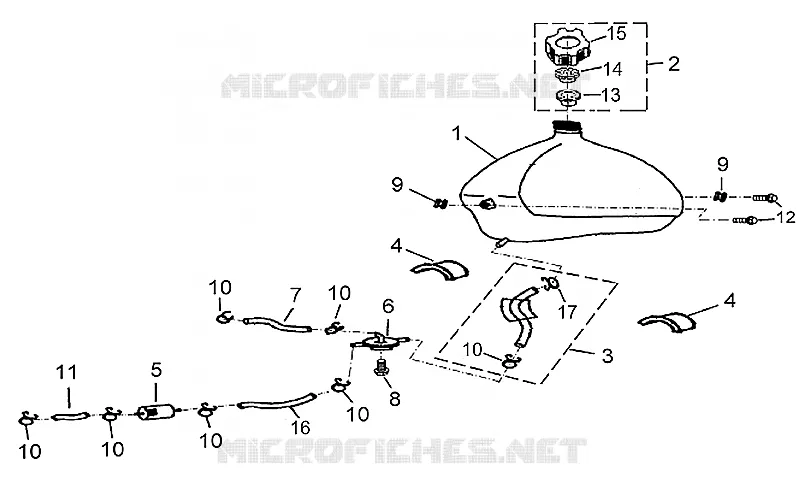

Fuel tank
6
Parts Diagram
Parts Catalog
Saddle
by
Front/rear shock absorber
Fuel tank
1
2
3
4
4
5
6
7
8
9
9
10
10
10
10
10
10
10
11
12
13
14
15
16
17
1
Fuel tank
AP8910725
Not Available
2
Fuel filler cap
AP8910727
Not Available
3
pipe 210x6,5
AP8911076
Not Available
4
Adhesive sponge
AP8910293
Not Available
5
Filter
AP8910086
Not Available
6
Fuel cock
AP8910706
Not Available
7
pipe 4x8(L=300), W=16,8g
AP8911386
Not Available
8
Screw w/ flange M6x16
AP8910427
Not Available
9
Rubber spacer
AP8911009
Not Available
10
Clip 8x0,8
AP8910414
Not Available
11
pipe
AP8911384
Not Available
12
Screw w/ flange M6x16
AP8910351
Not Available
13
Stop ring 6x0,8
AP8911078
Not Available
13
Filter
AP8910729
Not Available
14
Breather
AP8910728
Not Available
15
Fuel filler cap
AP8911326
Not Available
16
pipe 5x9-L=50
AP8911385
Not Available
17
Clip 12 mm
AP8910415
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
