1
Engine displacement
180
2
Model
QUASAR
3
Year
2004
4
Trim
Quasar
5
Parts Catalog

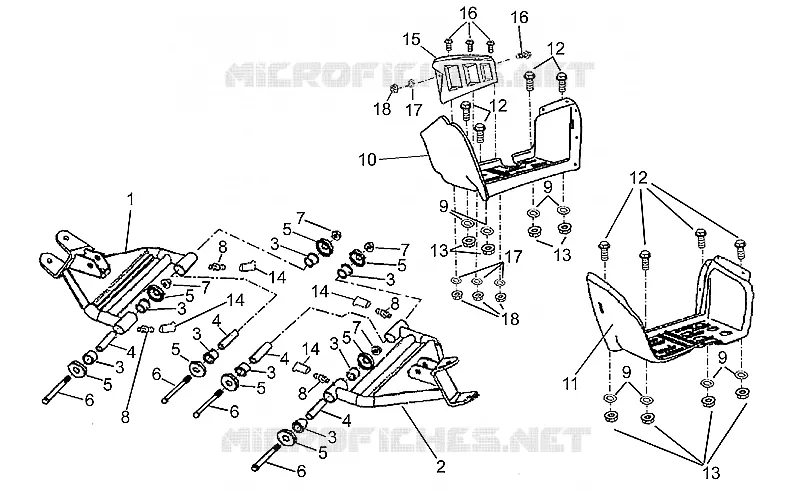

Connect. Elem.ts-Footrest
6
Parts Diagram
Parts Catalog
Parcel rack- Protection
by
Body HP
Connect. Elem.ts-Footrest
1
2
3
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
5
5
5
5
5
6
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
11
12
12
12
13
13
13
14
14
14
14
15
16
16
17
17
18
18
1
Connect.Elem.ts-Rh shock abs.
AP8911269
Not Available
2
Connect.Elem.ts-Left shock abs
AP8911268
Not Available
3
Bushing 15,5x21x18
AP8910980
Not Available
4
Spacer 10x15x55
AP8910981
Not Available
5
Dust cover
AP8910975
Not Available
6
Screw w/ flange M10x75
AP8911106
Not Available
7
Flanged nut
AP8910376
Not Available
8
lubricator
AP8910256
Not Available
9
Plain washer 6x13x1
AP8910382
Not Available
10
RH footrest
AP8910999
Not Available
11
LH footrest
AP8911000
Not Available
12
Screw w/ flange M6x16
AP8910351
Not Available
13
Nut M6
AP8910311
Not Available
14
Cap B
AP8910257
Not Available
15
Heat protection
AP8910949
Not Available
16
Screw w/ flange
AP8910585
Not Available
17
Plain washer 5x14x1
AP8910379
Not Available
18
Nut
AP8910310
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
