1
Engine displacement
50
2
Model
SONIC
3
Year
2004
4
Trim
Sonic H2O
5
Parts Catalog

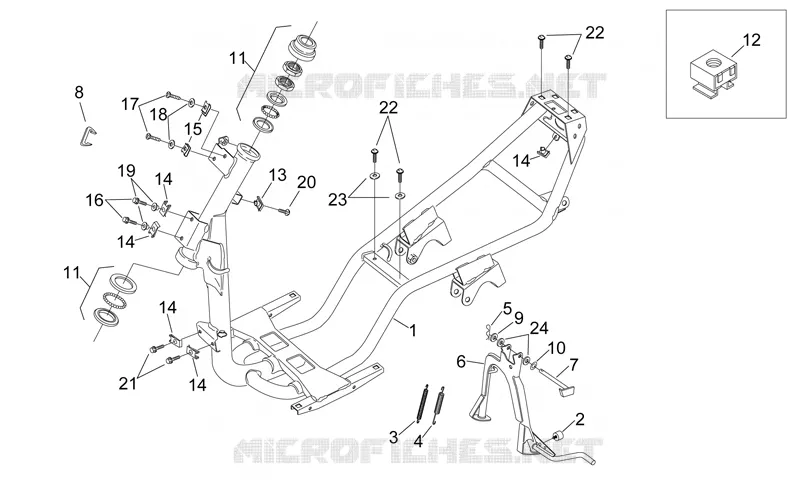

Frame and central stand
6
Parts Diagram
Parts Catalog
by
Front fork
Frame and central stand
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
14
14
14
14
15
16
17
18
19
20
21
22
22
23
24
1
Frame with electro-coating
AP8232985
Not Available
1
Frame with electro-coating
AP8235106
Not Available
2
Stand end stop
AP8144277
$5,38 Unit Price incl. VAT
3
Internal lateral stand spring
AP8221211
$4,86 Unit Price incl. VAT
4
Lateral stand spring
AP8221204
$5,45 Unit Price incl. VAT
5
Split pin *
AP8201431
$5,38 Unit Price incl. VAT
6
Central stand
AP8232987
$114,85 Unit Price incl. VAT
7
Stand pin with washer
AP8221296
$44,42 Unit Price incl. VAT
8
Plugs spring
AP8121309
$5,38 Unit Price incl. VAT
9
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
10
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
11
Ball ring set, complete
AP8203923
Not Available
12
Captive nut M6
AP8221213
$3,65 Unit Price incl. VAT
13
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
14
Clip M6
AP8102376
Not Available
15
Screw clip D5,5*
AP8201763
$3,65 Unit Price incl. VAT
16
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
17
Screw 5,5x22*
AP8150425
$3,65 Unit Price incl. VAT
18
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
19
Bush
AP8121991
$5,20 Unit Price incl. VAT
20
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
21
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
22
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
23
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
24
Rubber spacer
AP8220366
$4,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
