1
Engine displacement
50
2
Model
SONIC
3
Year
2004
4
Trim
Sonic H2O
5
Parts Catalog

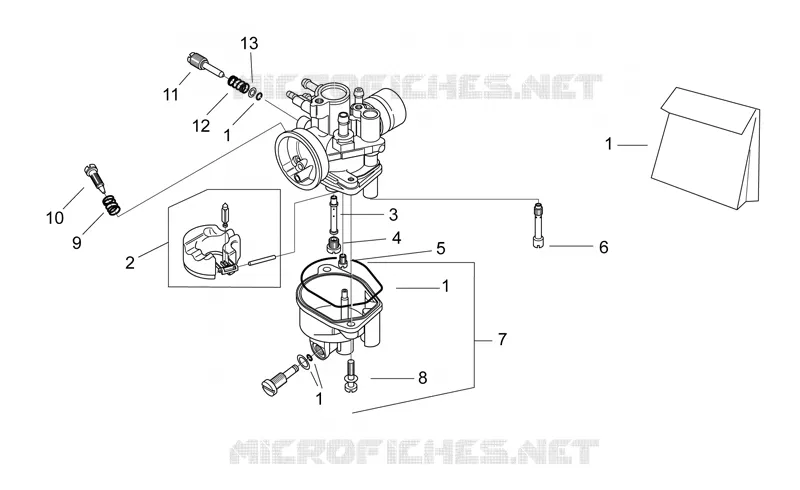

Carburettor II
6
Parts Diagram
Parts Catalog
Carburettor I
by
Acc. - Top/cases, side cases
Carburettor II
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Gasket envelope
AP8206886
Not Available
2
Float kit
AP8206890
Not Available
3
Needle valve GA211
AP8206797
$5,53 Unit Price incl. VAT
3
Needle valve GA209
AP8206707
Not Available
4
Main jet 74
AP8222684
Not Available
4
Main jet 58
AP8206994
Not Available
4
Main jet 62
AP8222682
$5,53 Unit Price incl. VAT
4
Main jet 66
AP8206939
Not Available
4
Main jet 70
AP8222479
Not Available
5
Idle jet 32
AP8206902
Not Available
5
Idle jet 38
AP8206795
$5,38 Unit Price incl. VAT
5
Idle jet 34
AP8222685
Not Available
6
Starter jet 45
AP8206903
Not Available
6
Starter jet 45
AP8206904
$6,38 Unit Price incl. VAT
7
Float chamber
AP8206889
Not Available
8
Float chamber fixing screw
AP8206887
Not Available
9
Adj.min.eng.spd air scr.spring
AP8206894
Not Available
10
Adj.min.eng.speed air screw
AP8206907
Not Available
11
Gas valve adj.screw
AP8206895
Not Available
12
Gas valve adj.screw spring
AP8206896
Not Available
13
Flat washer
AP8206897
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
