1
Engine displacement
50
2
Model
SONIC
3
Year
2004
4
Trim
Sonic H2O
5
Parts Catalog
Clutch
6

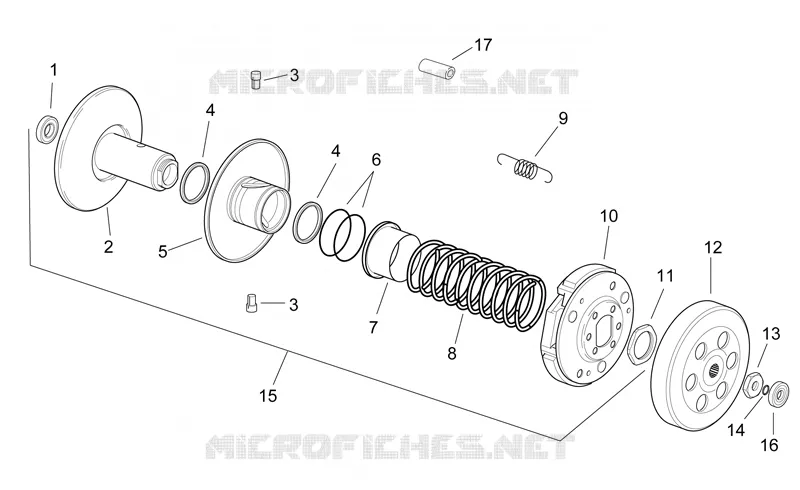

Parts Diagram
Parts Catalog
Central crank-case set
by
Carburettor - oil pump assy.
Clutch
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Oil seal
AP8206214
Not Available
2
Sec. fixed sheave, complete
AP8206735
Not Available
3
Guide roller for variator
AP8206741
$4,36 Unit Price incl. VAT
4
Oil seal D34x39x4
AP8206743
Not Available
5
Sec. sliding sheave, complete
AP8206736
Not Available
6
O-ring D36x1,5
AP8206740
Not Available
7
Variator spring cup
AP8206737
Not Available
8
Sec. sheave spring
AP8206729
Not Available
9
Brake shoes return spring
AP8206762
$8,65 Unit Price incl. VAT
10
Centrifugal clutch assy
AP8206763
$157,21 Unit Price incl. VAT
11
Nut M28x1
AP8206732
Not Available
12
Clutch housing, complete
AP8206733
Not Available
13
Nut m10x1 h=5,8
AP8206829
Not Available
14
O-ring d6,5x3
AP8206837
Not Available
15
Speed variator w/ clutch
AP8206761
Not Available
16
Bearing d8x28x9
AP8206836
Not Available
17
Brake shoes rubber D4x11
AP8206734
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
