1
Engine displacement
50
2
Model
SONIC
3
Year
2004
4
Trim
Sonic H2O
5
Parts Catalog
Electrical system
6

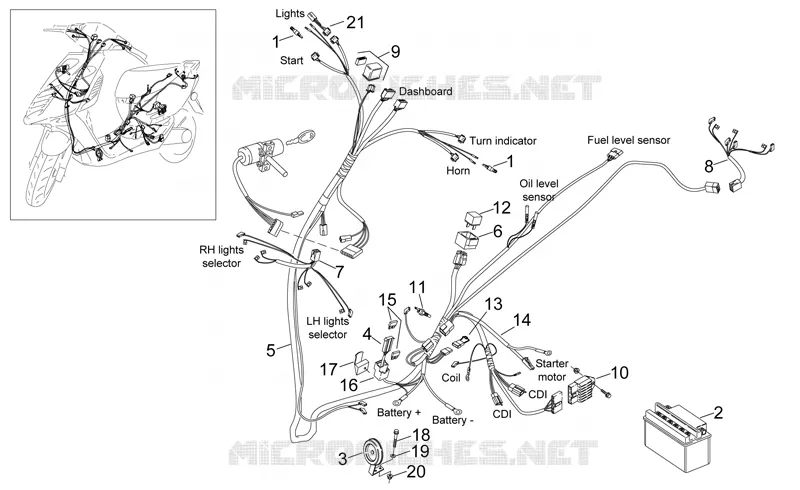

Parts Diagram
Parts Catalog
Lights
by
Plate set and handbook
Electrical system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Stop switch
AP8124818
Not Available
2
Battery 12V-4Ah
AP8212110
Not Available
3
Horn
AP8224013
Not Available
4
Rubber fuse box
AP8120754
$6,30 Unit Price incl. VAT
5
Main wiring harness
AP8212890
Not Available
5
Main wiring harness
AP8224019
Not Available
6
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
7
Headlight wiring w/harness
AP8212993
Not Available
7
Headlight wiring w/harness
AP8212889
Not Available
8
Taillight wiring harn.
AP8224020
Not Available
8
Taillight wiring harn.
AP8212891
Not Available
9
Flasher unit
AP8124235
$14,18 Unit Price incl. VAT
10
Voltage regulator
AP8212799
$85,05 Unit Price incl. VAT
11
Thermistor
AP8212708
$15,98 Unit Price incl. VAT
12
Starter relay
AP8224057
$10,00 Unit Price incl. VAT
13
Diode
AP8212382
$5,38 Unit Price incl. VAT
14
Starter motor wiring harness
AP8212670
Not Available
15
Fuse 7,5A
AP8112244
Not Available
16
Rubber fuse box
AP8220342
Not Available
17
Fuse block support
AP8234094
$18,75 Unit Price incl. VAT
18
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
19
Bush
AP8121991
$5,20 Unit Price incl. VAT
20
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
21
Lights selector cable -j-
AP8224024
Not Available
21
Lights selector cable
AP8224025
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
