1
Engine displacement
50
2
Model
SONIC
3
Year
2004
4
Trim
Sonic H2O
5
Parts Catalog

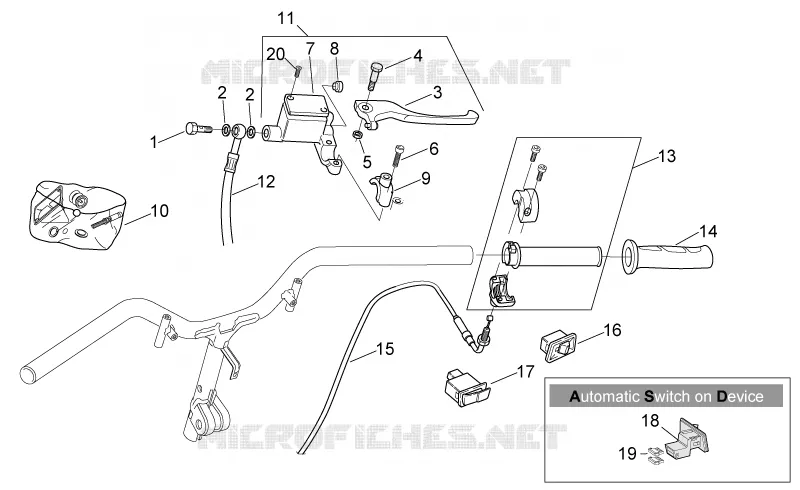

RH controls
6
Parts Diagram
Parts Catalog
LH Controls
by
Water cooler
RH controls
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
2
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
3
Polished brake lever
AP8213284
Not Available
3
Front brake lever
856144
Not Available
4
Brake lever pin
AP8213584
$3,65 Unit Price incl. VAT
4
Lever screw
AP8125757
$6,60 Unit Price incl. VAT
5
Nut
AP8213298
$3,65 Unit Price incl. VAT
5
Nut
AP8213585
$3,65 Unit Price incl. VAT
6
Cap screw
AP8213299
$3,65 Unit Price incl. VAT
6
Cap screw
AP8213582
$3,65 Unit Price incl. VAT
7
Tank cover
AP8213272
$15,98 Unit Price incl. VAT
8
Master cyl.level window
AP8113414
Not Available
9
LH U-bolt
AP8213382
Not Available
9
LH U-bolt
AP8213580
$15,31 Unit Price incl. VAT
10
Pump revision kit
AP8213375
$59,95 Unit Price incl. VAT
11
Front master cilinder
AP8213613
Not Available
11
Front master cilinder
AP8213287
Not Available
12
Front brake hose
AP8213362
$27,11 Unit Price incl. VAT
13
Throttle w/out hand grip
AP8218399
$10,90 Unit Price incl. VAT
14
Handgrip pair, grey
AP8218477
Not Available
14
Handgrip pair, yellow
AP8218401
Not Available
14
Handgrip pair, yellow
AP8218554
$5,34 Unit Price incl. VAT
14
Handgrip pair, black
AP8218400
Not Available
15
Throttle cable
AP8214172
$11,74 Unit Price incl. VAT
16
3-way lightbutton
AP8212764
Not Available
16
2-way lightbutton
AP8212837
Not Available
16
2-way lightbutton
AP8212994
$10,18 Unit Price incl. VAT
17
Start pushbutton
AP8124208
$11,69 Unit Price incl. VAT
18
Cover
AP8104546
$5,38 Unit Price incl. VAT
19
Light connector
AP8127487
$10,76 Unit Price incl. VAT
20
Pump cover screw
AP8213583
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
