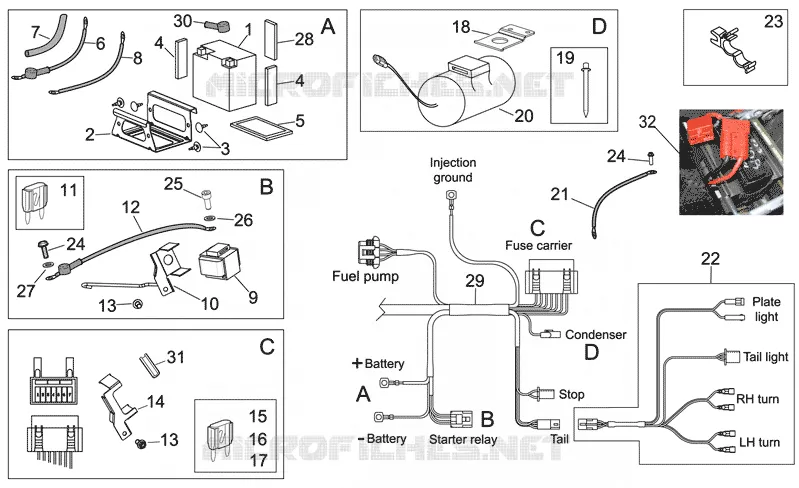

Electrical system II FOR RXV-SXV Vdb-Merriman FROM 2008

Electrical system II

1

Battery

853664

Not Available

2

Battery case cpl.

AP9101000

$20,60 Unit Price incl. VAT

2

Battery case cpl.

853669

Not Available

3

Rubber spacer

AP8120001

$0,77 Unit Price incl. VAT

4

Gasket

AP8144538

Not Available

5

Rubber spacer

AP9100725

Not Available

6

Relay battery wiring

AP9100371

$12,30 Unit Price incl. VAT

7

Rubber pipe 12,8x8,8 L=120

AP9100393

$5,38 Unit Price incl. VAT

8

Ground-battery lead

AP9100372

$15,37 Unit Price incl. VAT

9

Starter relay

AP9100487

$55,57 Unit Price incl. VAT

10

Plate

AP9100325

$10,00 Unit Price incl. VAT

11

Fuse 30a

AP8124273

Not Available

12

Starter motor wiring harness

AP9100558

$21,52 Unit Price incl. VAT

13

Screw w/ flange M5x12 titan

853536

Not Available

13

Screw w/ flange M5x12

AP8152272

$0,08 Unit Price incl. VAT

14

Fuse block support

AP9100327

$5,38 Unit Price incl. VAT

15

Fuse

AP8176099

Not Available

16

Fuse 7,5A

AP8112244

Not Available

17

Fuse 15A

AP8112176

$5,38 Unit Price incl. VAT

18

Plate

AP9100742

Not Available

19

Tearing rivet inox

AP9100782

Not Available

20

Condenser 10000 Uf

AP9100739

$58,68 Unit Price incl. VAT

21

Engine-frame ground wiring

AP9100783

$15,37 Unit Price incl. VAT

22

Taillight wiring harn.

855111

$17,69 Unit Price incl. VAT

23

Spring

AP9100765

$5,38 Unit Price incl. VAT

24

Screw w/ flange

853551

Not Available

24

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

25

Hex socket screw M6x8 titan

853670

Not Available

25

Hex socket screw

AP8152123

$3,65 Unit Price incl. VAT

26

Spring washer 6,4x11x0,5*

AP8150429

Not Available

27

Curved spring washer 5,3x10x0,5

AP8150272

$3,65 Unit Price incl. VAT

28

Adhesive sponge 15x8

AP8117004

$5,38 Unit Price incl. VAT

29

Main wiring harness

855303

Not Available

29

Main wiring harness

855367

Not Available

30

Terminal cap

AP9100959

$5,38 Unit Price incl. VAT

31

Gasket

AP9100997

$5,38 Unit Price incl. VAT

32

Wiring

853663

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
