1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV Vdb-Merriman
5
Parts Catalog

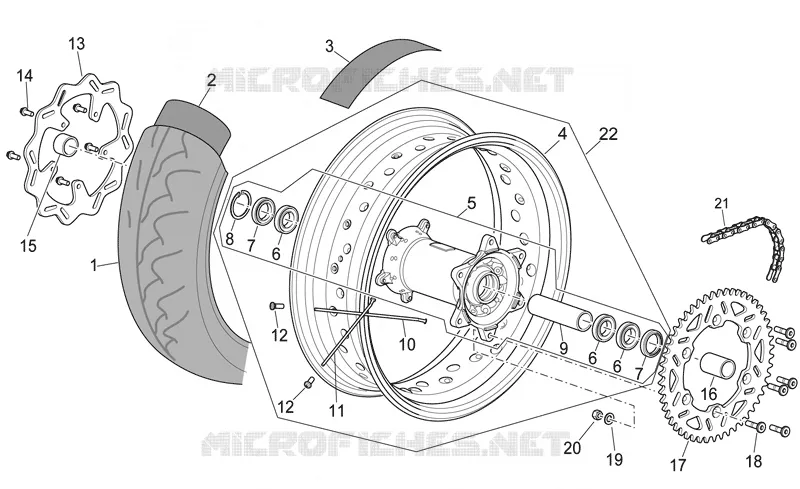

Rear wheel II
6
Parts Diagram
Parts Catalog
Air box
by
Foot rests
Rear wheel II
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
Rear tyre 170/55X17"
853632
Not Available
2
Inner tube 17"
AP9100526
$45,43 Unit Price incl. VAT
3
Flap 17"
AP9100527
Not Available
4
Rear wheel 5,5X17"
855459
Not Available
5
Rear hub
855447
Not Available
6
Ball bearing 25x42x9
853626
$137,70 Unit Price incl. VAT
7
Gasket ring 32x42x7
853627
$22,46 Unit Price incl. VAT
8
Circlip D.42
853629
$8,01 Unit Price incl. VAT
9
Internal spacer L=134,3
855454
Not Available
10
Spoke 4-17"-l.189
855457
Not Available
10
Spoke 4-17"-l.189
855458
Not Available
11
Spoke d.4-17"-l.184
855456
Not Available
11
Spoke d.4-17"-l.184
855455
Not Available
12
Nipple d.4
853621
Not Available
13
Rear brake disc d.240
AP9100466
$82,93 Unit Price incl. VAT
14
Screw w/ flange M6x16 titan
853595
Not Available
15
Outside spacer L=21,9
855307
Not Available
16
Outside spacer L=45,1
855361
Not Available
17
Chain ring Z=46
AP9100334
$95,85 Unit Price incl. VAT
17
Chain ring Z=45
AP9100333
$97,20 Unit Price incl. VAT
17
Chain ring Z=44
AP9100932
$121,73 Unit Price incl. VAT
17
Chain ring Z=47
AP9100335
$105,30 Unit Price incl. VAT
18
Screw M8x30 titan
853640
Not Available
19
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
20
Low self-locking nut M8x1,25
853641
Not Available
21
Chain 5/8x1/4
855412
Not Available
22
Rear wheel 17"
855352
Not Available
23
Connecting link
853870
$10,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
