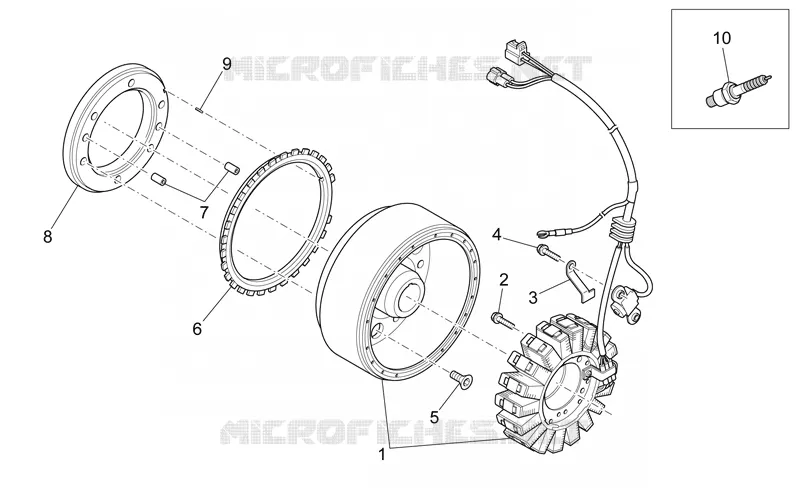

Ignition unit FOR RXV-SXV Vdb-Merriman FROM 2008

Ignition unit

1

Cdi magneto assy

AP9150180

Not Available

1

Cdi magneto assy

855240

Not Available

2

Screw w/ flange M5x25

AP8152275

Not Available

3

Plate

855489

$38,27 Unit Price incl. VAT

3

Plate

AP9100387

Not Available

4

Screw w/ flange M5x12

AP8152272

$0,08 Unit Price incl. VAT

5

Screw

AP9150401

$3,65 Unit Price incl. VAT

6

Phonic wheel

AP9150205

$53,34 Unit Price incl. VAT

7

Pin D5x8

AP9150380

$6,35 Unit Price incl. VAT

8

Flange

AP9150204

Not Available

9

Washer D13,5x21x1

AP9150451

$3,65 Unit Price incl. VAT

10

Spark plug CR8EKB

639687

$14,54 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
