1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV Vdb-Merriman
5
Parts Catalog

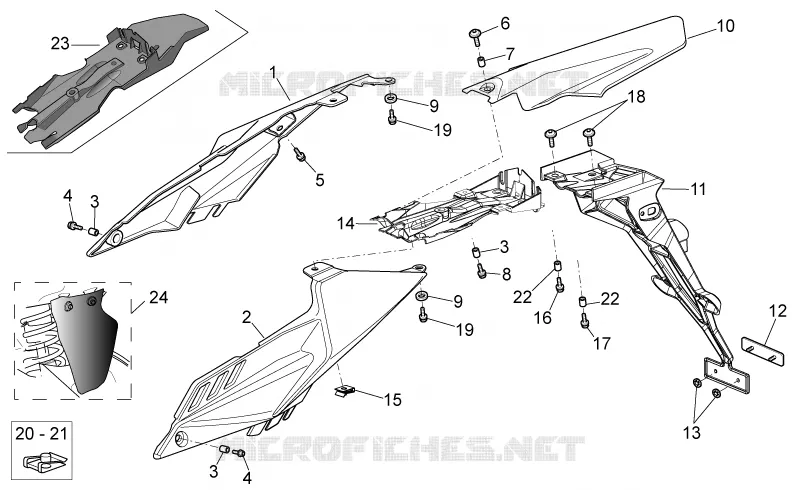

Rear body I
6
Parts Diagram
Parts Catalog
Front wheel II
by
Front wheel I
Rear body I
1
2
3
3
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
1
Rh rear fairing
AP8184511
Not Available
1
Rh rear fairing
AP8184513
Not Available
2
Lh rear fairing
AP8184512
$70,25 Unit Price incl. VAT
2
Lh rear fairing
AP8184510
Not Available
3
Bush d.10-h.3,5
AP9100053
$1,70 Unit Price incl. VAT
4
Screw w/ flange M6x16 inox
AP9100645
$2,95 Unit Price incl. VAT
4
Screw w/ flange M6x16 titan
853679
Not Available
5
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
5
Screw w/ flange M6x25 titan
853681
Not Available
6
Vite TBEI M6x25
AP8152117
$0,25 Unit Price incl. VAT
6
Hex socket screw M6x20
853682
Not Available
7
Bush 10x7
AP9100594
$3,65 Unit Price incl. VAT
8
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
9
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
10
Rear mudguard
AP8156340
Not Available
10
Rear mudguard
AP8156341
Not Available
11
Number plate holder
855041
Not Available
12
Rear reflector
AP8112202
Not Available
13
Washer for shafts D5
AP8150450
$0,25 Unit Price incl. VAT
14
Saddle supp.lower lockup
855046
$17,83 Unit Price incl. VAT
15
Low self-locking nut M6
853580
Not Available
15
Clip M6
AP8102376
Not Available
16
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
17
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
18
Screw w/ flange M5x9
AP8152339
$3,65 Unit Price incl. VAT
19
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
19
Screw w/ flange
853680
Not Available
20
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
21
Clip M6
AP8102376
Not Available
22
T bush
AP8121795
$3,38 Unit Price incl. VAT
23
Rac.number plate holder
855050
$7,23 Unit Price incl. VAT
24
Shock abs. guard plate racing
851450
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
