Cooling system FOR RXV-SXV Vdb-Merriman FROM 2008

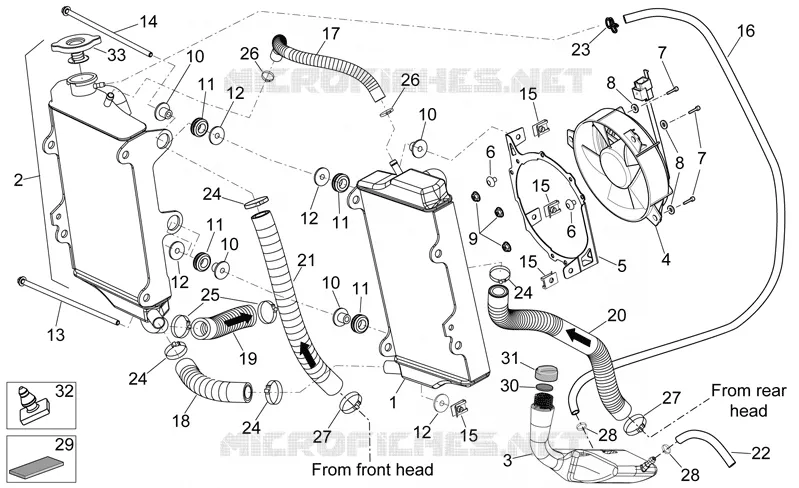

Cooling system

1

Water cooler, LH

853825

Not Available

2

Water cooler, RH

853826

Not Available

3

Expansion tank

853613

Not Available

3

Expansion tank

AP9100506

$223,85 Unit Price incl. VAT

4

Fan, cpl.

AP8124930

Not Available

5

Fan support

AP9100780

$20,60 Unit Price incl. VAT

6

Plug

AP8120876

$5,38 Unit Price incl. VAT

7

Hex socket screw M5x12

AP8152267

$0,34 Unit Price incl. VAT

8

Washer 5,5x15x1,6*

AP8150013

$3,65 Unit Price incl. VAT

9

Low self-locking nut

AP8150451

$0,17 Unit Price incl. VAT

10

Bush

AP9100376

$3,65 Unit Price incl. VAT

11

Silent-block *

AP9100969

Not Available

12

Washer 24,8x6,2x1

AP9100375

Not Available

13

Screw w/ flange M6x133

AP9100781

$5,20 Unit Price incl. VAT

14

Screw w/ flange M6x122

AP9100663

$3,65 Unit Price incl. VAT

15

Clip M6

AP8102376

Not Available

16

Fuel pipe 5,5x10

AP8120952

Not Available

17

Breather pipe 7,5X3,5

855265

Not Available

17

Breather pipe 7,5X3,5

AP8144506

$8,91 Unit Price incl. VAT

18

pipe 23x15x135

AP9100555

Not Available

18

pipe 23x15x125

CM238403

Not Available

19

Cooler-pump pipe 27x19x145

855266

$63,94 Unit Price incl. VAT

19

Cooler-pump pipe 27x19x145

AP9100557

$6,30 Unit Price incl. VAT

20

pipe 23x15x380

AP9100553

$8,91 Unit Price incl. VAT

20

pipe 23x15x395

CM238401

Not Available

21

pipe 23x15x295

CM238402

Not Available

21

pipe 23x15x295

AP9100554

$7,23 Unit Price incl. VAT

22

Fuel pipe 5,5x10

AP8120952

Not Available

23

Hose clamp D11,3

AP8102378

$0,21 Unit Price incl. VAT

24

Hose clip D22x8,6*

AP8201169

$5,38 Unit Price incl. VAT

25

Hose clip 26x8

AP9100456

$3,65 Unit Price incl. VAT

26

Hose clip 14,5x8

AP9100714

$3,65 Unit Price incl. VAT

27

Hose clip 21x8

AP9100697

$3,65 Unit Price incl. VAT

28

Hose clip, green D11x6,6x1

AP8120446

$0,75 Unit Price incl. VAT

29

Adhesive sponge 6x30

AP8117041

$5,38 Unit Price incl. VAT

30

Gasket

AP8220191

Not Available

31

Expansion tank plug

AP8104124

$5,38 Unit Price incl. VAT

32

Rubber spacer

AP8120455

$6,30 Unit Price incl. VAT

33

Water cooler filler cap

AP9100948

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
