Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Magneto - Starting gear
6

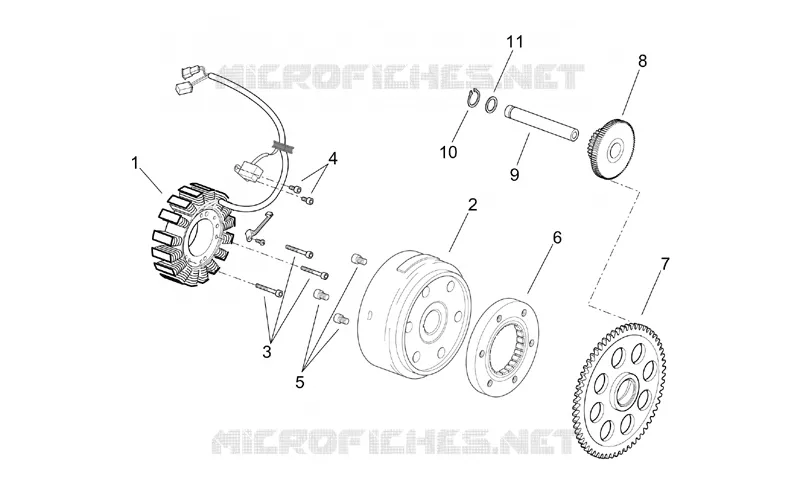

Parts Diagram
Parts Catalog
Engine head
by
Starter motor
Magneto - Starting gear
1
2
3
4
5
6
7
8
9
10
11
1
Stator cpl.
AP8122629
Not Available
2
Flywheel rotor
AP8122591
Not Available
3
Hex socket screw
AP8122417
Not Available
4
Hex socket screw
AP8122421
Not Available
5
Hex socket screw
AP8122422
Not Available
6
Starter clutch assy.
AP8122626
Not Available
7
Free wheel gear
AP8122499
Not Available
8
Intermediate gear
AP8122498
Not Available
9
Shaft pin
AP8122612
Not Available
10
Stop ring D12
AP8122438
Not Available
11
Washer
AP8122640
Not Available
