1
Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

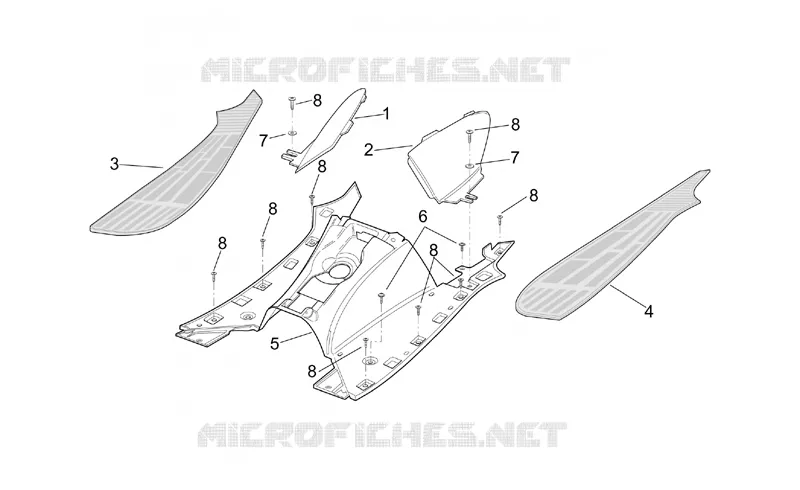

Central body - Panel
6
Parts Diagram
Parts Catalog
Front body - Internal shield
by
Central body - Underpanel
Central body - Panel
1
2
3
4
5
6
7
7
8
8
8
8
8
8
8
8
1
RH side cover, grey
AP8139321
Not Available
1
RH side cover, grey
AP8149637
Not Available
1
RH side cover, green
AP8148288
Not Available
1
RH side cover, blue
AP8139909
Not Available
2
LH side cover, green
AP8148289
Not Available
2
LH side cover, grey
AP8139320
Not Available
2
LH side cover, grey
AP8149638
Not Available
2
LH side cover, blue
AP8139910
Not Available
3
RH mat, blue
AP8139911
Not Available
3
RH mat, grey
AP8139322
$15,98 Unit Price incl. VAT
3
RH mat, green
AP8148290
Not Available
3
RH mat, grey
AP8149639
$9,58 Unit Price incl. VAT
4
LH mat, grey
AP8139323
$9,52 Unit Price incl. VAT
4
LH mat, green
AP8148291
Not Available
4
LH mat, grey
AP8149640
Not Available
4
LH mat, blue
AP8139912
Not Available
5
Floor panel, grey
AP8149635
Not Available
5
Floor panel, grey
AP8139319
Not Available
5
Floor panel, green
AP8148286
Not Available
5
Floor panel, blue
AP8139907
Not Available
6
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
7
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
8
Screw 5,5x22*
AP8150425
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
