1
Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

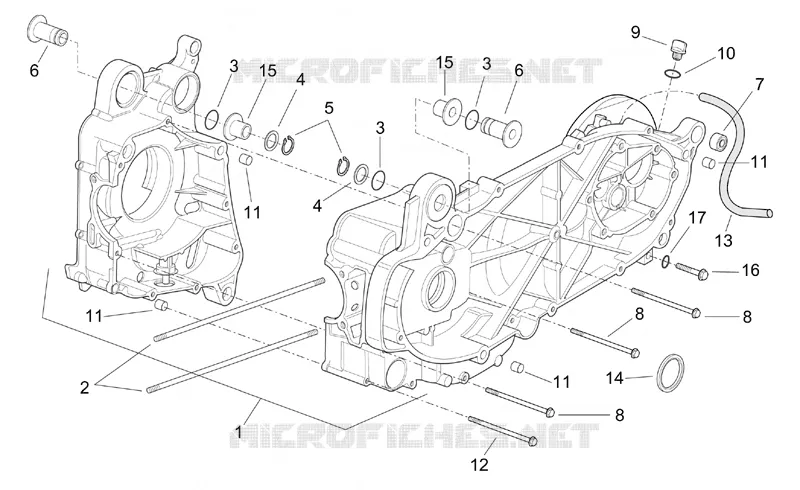

Crank-case
6
Parts Diagram
Parts Catalog
Engine
by
Clutch side cover
Crank-case
1
2
3
3
3
4
4
5
6
6
7
8
8
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
Crankcase assy
AP8122469
Not Available
2
Stud bolt
AP8122424
Not Available
3
O-ring
AP8144270
Not Available
4
Washer
AP8122647
Not Available
5
Circlip
AP8122439
Not Available
6
Spacer
AP8122454
Not Available
7
Bush
AP8122430
Not Available
8
Screw w/ flange
AP8122413
Not Available
9
Oil plug
AP8122585
Not Available
10
O-ring
AP8122545
Not Available
11
Pin
AP8122558
Not Available
12
Screw w/ flange
AP8122419
Not Available
13
pipe
AP8122511
Not Available
14
Oil seal
AP8122535
Not Available
15
Maintenance
AP8122507
Not Available
16
Screw w/ flange
AP8122416
Not Available
17
Washer
AP8122486
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
