1
Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

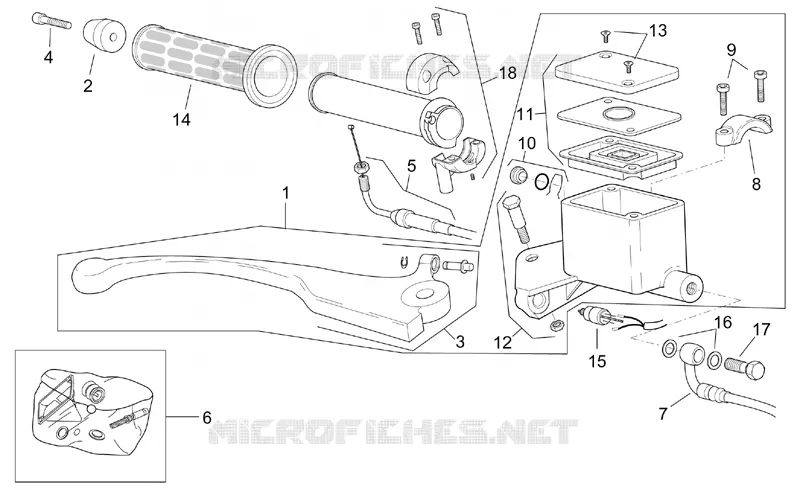

Front master cilinder
6
Parts Diagram
Parts Catalog
Dashboard
by
Rear master cylinder
Front master cilinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Front master cilinder
AP8113708
Not Available
2
H.bars anti.v weight
AP8202188
$5,38 Unit Price incl. VAT
2
H.bars anti.v weight
AP8102717
$7,35 Unit Price incl. VAT
3
Brake lever
AP8218480
Not Available
4
Screw w/ flange
AP8152283
$0,32 Unit Price incl. VAT
4
Hex socket screw M6x35
AP8150285
$0,34 Unit Price incl. VAT
5
Throttle cable
AP8114368
Not Available
6
Pump revision kit
AP8213464
Not Available
7
Front brake hose
AP8113707
$38,76 Unit Price incl. VAT
8
Brake lever U-bolt
AP8113637
$15,22 Unit Price incl. VAT
9
Cap screw
AP8213299
$3,65 Unit Price incl. VAT
10
Master cyl.level window, assy
AP8213455
$16,91 Unit Price incl. VAT
11
Pump cover
AP8249191
$61,48 Unit Price incl. VAT
12
Lever pin cpl.
AP8218483
Not Available
13
Pump cover screw
AP8213400
$3,65 Unit Price incl. VAT
14
Handgrip pair, blue
AP8118544
Not Available
14
Handgrip pair, grey
AP8118606
Not Available
14
Handgrip pair, grey
AP8118610
Not Available
14
Handgrip pair, green
AP8118545
Not Available
15
Stop switch
AP8124818
Not Available
16
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
17
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
18
Throttle w/out hand grip
AP8118548
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
