1
Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

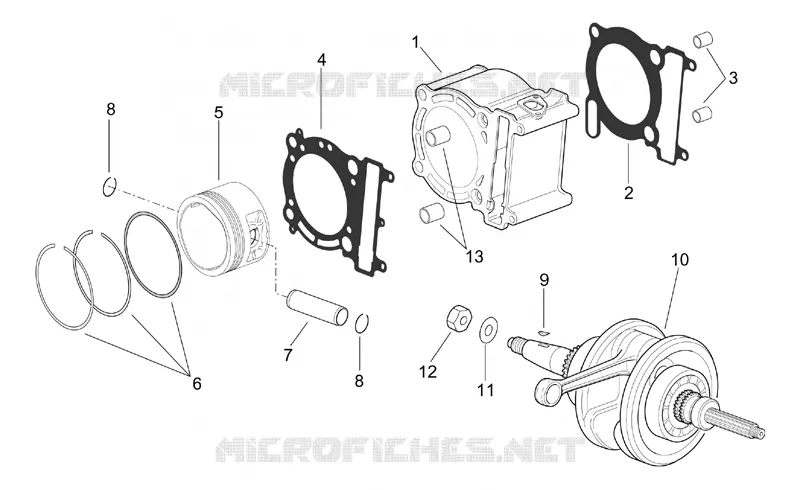

Drive shaft - Cylinder - Piston
6
Parts Diagram
Parts Catalog
Flywheel side cover
by
Valves
Drive shaft - Cylinder - Piston
1
2
3
4
5
6
7
8
8
9
10
11
12
13
1
Cylinder
AP8122471
Not Available
2
Cylinder base gasket
AP8122492
Not Available
3
Pin
AP8122558
Not Available
4
Cylinder head gasket
AP8122493
Not Available
5
Piston 0,5 mm
AP8122571
Not Available
5
Piston 1,00 mm
AP8122572
Not Available
5
Piston
AP8122573
Not Available
6
Piston ring set 1,00 mm
AP8122575
Not Available
6
Piston ring set
AP8122576
$57,65 Unit Price incl. VAT
6
Piston ring set 0,5 mm
AP8122574
Not Available
7
Piston pin
AP8122563
$26,49 Unit Price incl. VAT
8
Circlip w. bent end
AP8122448
$1,27 Unit Price incl. VAT
9
Transmission key
AP8122521
Not Available
10
Crankshaft cpl.
AP8122470
Not Available
11
Washer
AP8122645
Not Available
12
Nut
AP8122526
Not Available
13
Pin D10,5x14x16
AP8122556
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
