1
Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Taillight
6

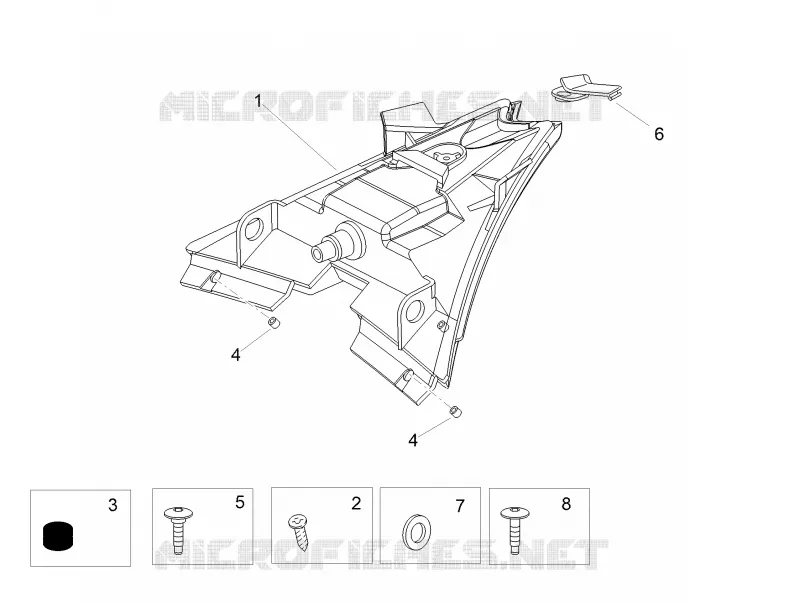

Parts Diagram
Parts Catalog
Frame II
by
Front wheel
Taillight
8
7
6
5
4
4
3
2
1
1
Taillight
858725
Not Available
2
Self-tapping screw *
AP8150420
$3,65 Unit Price incl. VAT
3
Rubber spacer
AP8220186
$0,62 Unit Price incl. VAT
4
Bushing 5,3x8x7,1
AP8221036
$0,27 Unit Price incl. VAT
5
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
6
Taillight Cover
858839
$2,77 Unit Price incl. VAT
7
Plastic washer
895916
$3,38 Unit Price incl. VAT
8
Hex socket screw M5x10
AP8150538
$4,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
