1
Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog

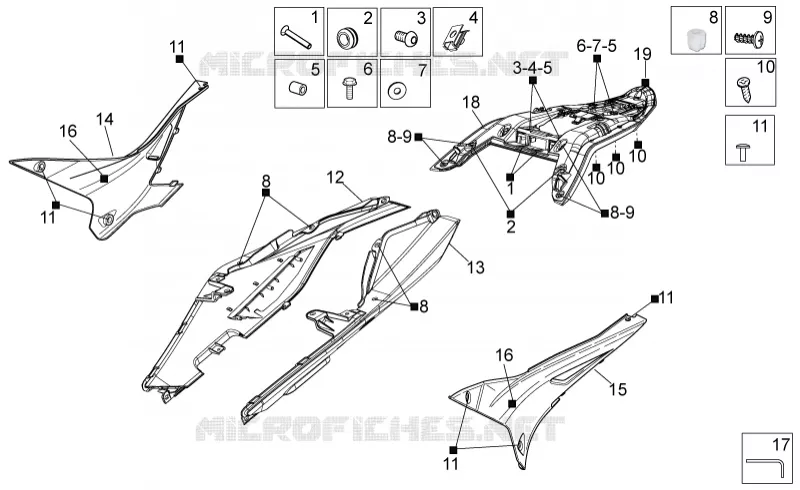

Rear body I
6
Parts Diagram
Parts Catalog
Electrical system III
by
ABS brake system
Rear body I
19
18
17
16
16
15
14
13
12
11
11
11
11
11
10
10
10
10
9
9
9
8
8
8
8
8
7
7
6
6
5
5
5
4
4
3
3
2
2
1
1
1
Screw M6x40
AP8150468
$3,65 Unit Price incl. VAT
2
Rubber spacer
AP8112600
$4,49 Unit Price incl. VAT
3
Hex socket screw M6x20
AP8224470
$0,34 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Bush 10x7
AP9100594
$3,65 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
7
Washer 12,5x6,4*
AP8150380
$2,95 Unit Price incl. VAT
8
female screw insert
B043254
$5,38 Unit Price incl. VAT
9
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
10
Self-tapping screw *
AP8150420
$3,65 Unit Price incl. VAT
11
Hex socket screw Black M5x12
896174
$0,34 Unit Price incl. VAT
12
RH rear fairing, black
2H001786000XN2
$434,97 Unit Price incl. VAT
12
RH rear fairing, grey
2H001788000EU
$414,67 Unit Price incl. VAT
13
LH rear fairing, black
2H001787000XN2
$414,67 Unit Price incl. VAT
13
LH rear fairing, grey
2H001789000EU
$414,67 Unit Price incl. VAT
14
RH side panel
858833
$8,84 Unit Price incl. VAT
15
LH side panel
858834
$8,84 Unit Price incl. VAT
16
Adhesive sponge 15x8
AP8117004
$5,38 Unit Price incl. VAT
17
Hex key
894195
$0,69 Unit Price incl. VAT
18
Rear handle, grey
89888000EU
$446,64 Unit Price incl. VAT
19
"Aprilia" dataplate
AP8157770
$6,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
