Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Crank-case I
6

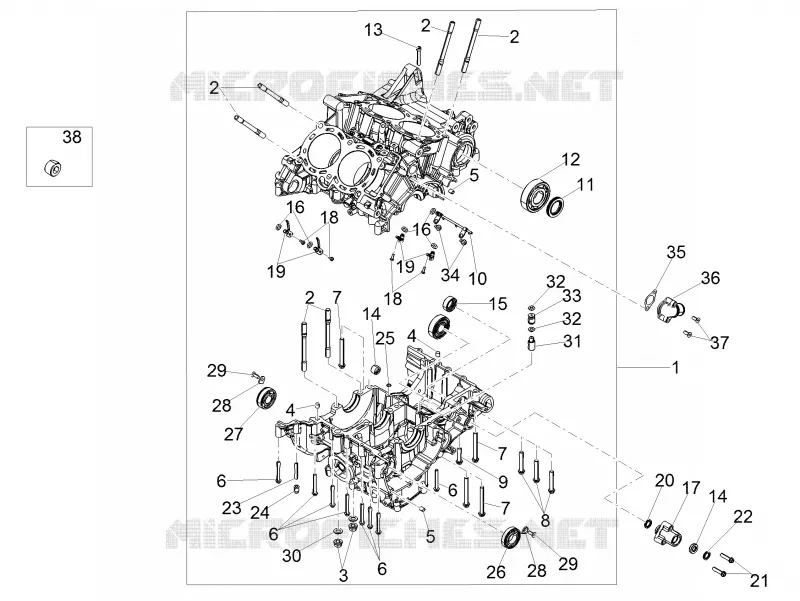

Parts Diagram
Parts Catalog
Front body III
by
Air box
Crank-case I
38
37
36
35
34
33
32
32
31
30
29
29
28
28
27
26
25
24
23
22
21
20
19
19
18
18
17
16
16
15
14
14
13
12
11
10
9
8
7
7
7
6
6
6
6
5
5
4
4
3
2
2
2
2
1
1
Carter, pair
2A0007875
Not Available
2
Stud bolt m10x126
857087
$4,37 Unit Price incl. VAT
3
Flanged nut M10x1
897434
$12,54 Unit Price incl. VAT
4
Pin M8x12
857427
$0,27 Unit Price incl. VAT
5
Pin
411209
$2,89 Unit Price incl. VAT
6
Screw w/ flange M6x50
AP9100433
$6,08 Unit Price incl. VAT
7
Screw w/ flange
AP8152294
$7,75 Unit Price incl. VAT
8
Screw w/ flange M8x50
AP8152292
$3,65 Unit Price incl. VAT
9
Screw w/ flange
AP8152289
$3,65 Unit Price incl. VAT
10
Lubrication pipe
2A000569
$61,80 Unit Price incl. VAT
11
Gasket ring 30x47x7
857128
$11,76 Unit Price incl. VAT
12
Ball bearing 30X72X19
898633
$45,53 Unit Price incl. VAT
13
Hex socket screw M6x40
AP8152003
$3,70 Unit Price incl. VAT
14
12x8x12 roller bearing
B045224
$6,35 Unit Price incl. VAT
15
Roller cage HK1512
857249
$15,55 Unit Price incl. VAT
16
O-ring 6x1
GU90706009
$3,65 Unit Price incl. VAT
17
Maintenance
857090
$46,51 Unit Price incl. VAT
18
Screw TB 4X12 TORX
B046202
$3,65 Unit Price incl. VAT
19
Piston cooling jet
2A000885
$45,50 Unit Price incl. VAT
20
Gasket ring 17,12X2,62
857109
$1,38 Unit Price incl. VAT
21
Hex socket screw M6x35
AP8150285
$0,34 Unit Price incl. VAT
22
Gasket ring 12x22
857127
Not Available
23
Stud bolt
2A000295
$6,60 Unit Price incl. VAT
24
Special nut
857496
$2,50 Unit Price incl. VAT
25
O-ring
857144
$2,72 Unit Price incl. VAT
26
Bearing
897436
$25,76 Unit Price incl. VAT
27
Bearing
897435
$20,14 Unit Price incl. VAT
28
Check bearing plate
AP9150145
$14,30 Unit Price incl. VAT
29
screw M6x16
AP8152166
$3,65 Unit Price incl. VAT
30
Washer 19 x 10,5 x 1,6
857208
$2,22 Unit Price incl. VAT
31
Lubricating jet
2A000363
$10,00 Unit Price incl. VAT
32
O-ring 2018
AP8120965
$3,65 Unit Price incl. VAT
33
Relief Valve
B045126
$40,88 Unit Price incl. VAT
34
Screw w/ flange
1A003114
$22,46 Unit Price incl. VAT
35
Water connection Gasket
1A006321
$1,70 Unit Price incl. VAT
36
Joint
857126
$9,22 Unit Price incl. VAT
37
Screw w/ flange
872117
Not Available
38
Plug M16X1,5
974060
$0,48 Unit Price incl. VAT
