1
Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog

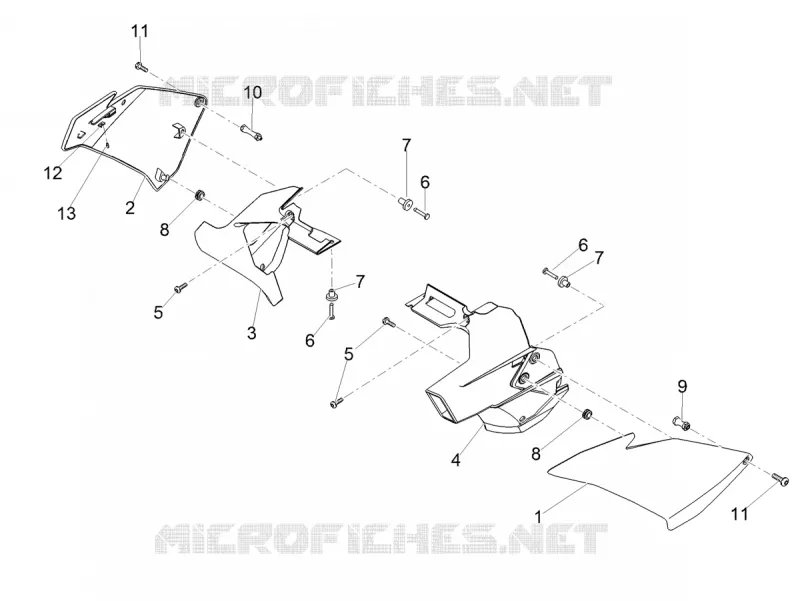

Front body II
6
Parts Diagram
Parts Catalog
Rear wheel
by
Lubrication
Front body II
13
12
11
11
10
9
8
8
7
7
7
6
6
6
5
5
4
3
2
1
1
LH lat.fairing, grey
2H001785000EU
$461,56 Unit Price incl. VAT
1
LH lat.fairing, black
2H001785000XN2
$461,56 Unit Price incl. VAT
2
RH lat.fairing, grey
2H001784000EU
$461,56 Unit Price incl. VAT
2
RH lat.fairing, black
2H001784000XN2
Not Available
3
RH cooler upper frame
2B001756
$32,28 Unit Price incl. VAT
4
LH cooler upper frame
2B003831
Not Available
5
Screw w/ flange M5x12
AP8152302
Not Available
6
Rivet, male
AP8144563
$0,32 Unit Price incl. VAT
7
Rivet, female
AP8144616
$0,23 Unit Price incl. VAT
8
Rubber spacer
AP8220186
$0,62 Unit Price incl. VAT
9
Spacer
894933
$12,15 Unit Price incl. VAT
10
Spacer
894933
$12,15 Unit Price incl. VAT
11
Hex socket screw Black M5x12
896174
$0,34 Unit Price incl. VAT
12
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
13
Threaded pin
2B003687
$4,21 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
