1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Handlebar - Mirrors RETRO'
6
Parts Diagram
Parts Catalog
Dashboard
by
Handlebar - Mirrors CUSTOM
Handlebar - Mirrors RETRO'
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
1
Handlebar
AP8118564
Not Available
2
Vis bride
AP8152290
$3,65 Unit Price incl. VAT
3
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
4
Vis
AP8150323
$3,65 Unit Price incl. VAT
5
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
6
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
7
Spacer
AP8144310
$1,55 Unit Price incl. VAT
8
Nut with caliper
AP8221256
Not Available
9
Soufflet en caoutchouc;
AP8220462
$5,38 Unit Price incl. VAT
10
LH rearview mirror
AP8104149
Not Available
11
RH rearview mirror
AP8104148
Not Available
12
Rivet en plastique
AP8102671
$0,16 Unit Price incl. VAT

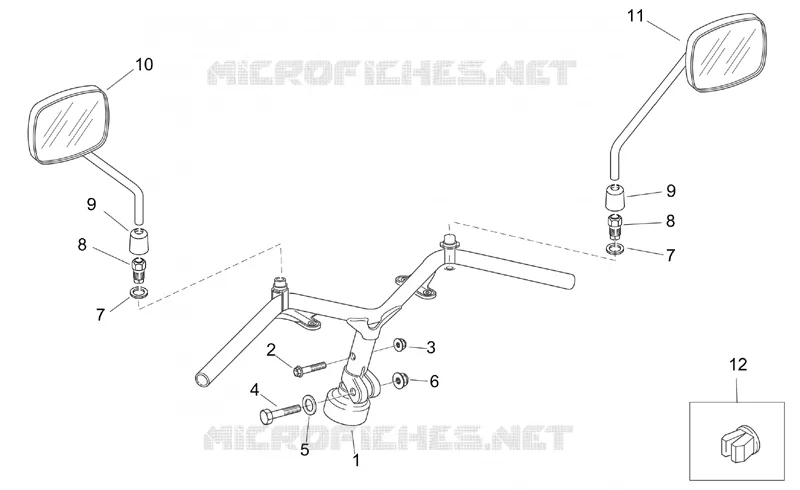

Find the detailed Handlebar - Mirrors RETRO' APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
