Electrical system - RETRO' for APRILIA Mojito from 2000

Electrical system - RETRO'

1

Main wiring harness

AP8124643

Not Available

1

Main wiring harness

AP8124874

Not Available

2

Horn

AP8124530

Not Available

3

Support clamp

AP8134627

Not Available

4

Vis bride

AP8152246

$0,27 Unit Price incl. VAT

5

Stop switch

AP8124818

Not Available

6

Main switch - steering lock

AP8124886

Not Available

7

Aprilia milled key

AP8102880

Not Available

8

Vis bride M6X16

AP8152278

$1,77 Unit Price incl. VAT

9

Vis à arrachement

AP8152140

$3,65 Unit Price incl. VAT

10

Caoutchouc p-fusibles

AP8112811

$6,40 Unit Price incl. VAT

11

Caoutchouc p-fusibles

AP8120754

$6,30 Unit Price incl. VAT

12

Fuse 15A

AP8112176

$5,38 Unit Price incl. VAT

13

Fuse 7,5A

AP8112244

Not Available

14

Engine-frame ground wiring

AP8550348

Not Available

15

Vis bride

AP8152272

$0,08 Unit Price incl. VAT

16

Relay-starter motor cable

AP8550350

Not Available

17

Ecrou autobloqu.

AP8152299

$0,34 Unit Price incl. VAT

18

Voltage regulator

AP8124648

Not Available

19

Battery

AP8124640

Not Available

20

Battery holder

AP8148591

Not Available

21

Battery box lockup

AP8148590

Not Available

22

Vis bride

AP8152246

$0,27 Unit Price incl. VAT

23

CDI unit assy

AP8124743

Not Available

24

Caoutchouc support relais

AP8220546

$4,62 Unit Price incl. VAT

25

Vis bride

AP8152274

$0,08 Unit Price incl. VAT

26

Starter device

AP8118531

Not Available

27

Starter relay

AP8224026

Not Available

28

Support p-fusibles;

AP8234094

$18,75 Unit Price incl. VAT

29

Rondelle

AP8150013

$3,65 Unit Price incl. VAT

30

Vis bride

AP8152273

$0,16 Unit Price incl. VAT

31

Clip

AP8102375

$0,69 Unit Price incl. VAT

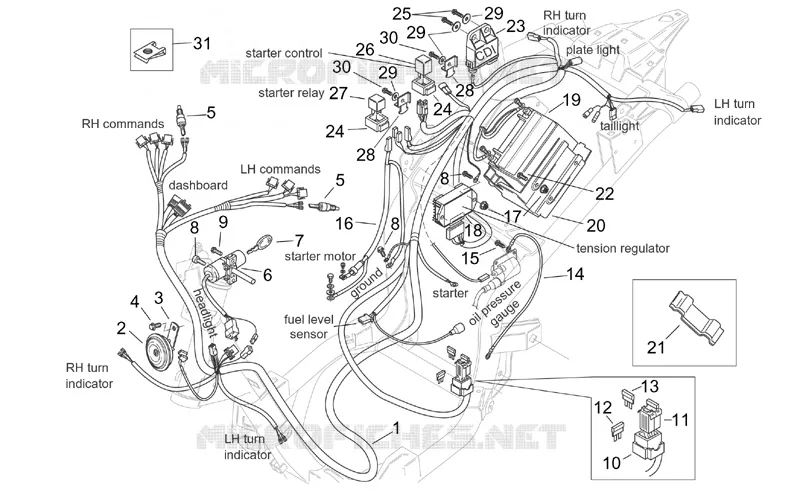

Find the detailed Electrical system - RETRO' APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
