1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog

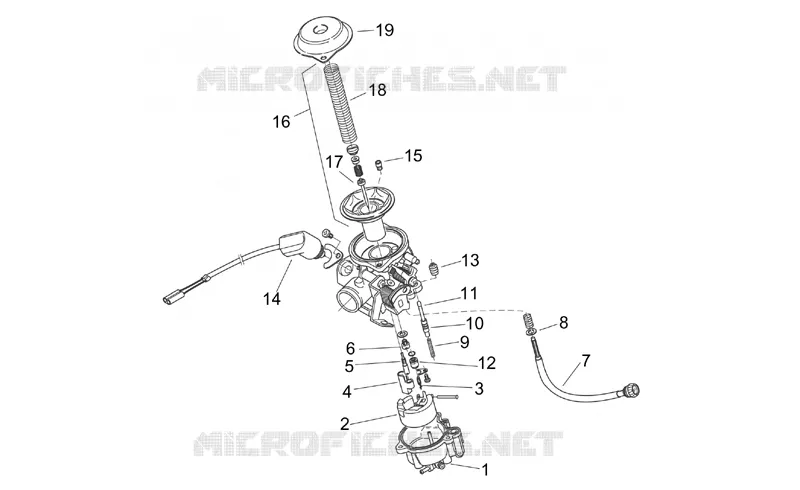

Carburettor - Components
6
Parts Diagram
Parts Catalog
Carburettor
by
Crank-case
Carburettor - Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Float chamber
AP8550537
Not Available
2
Float
AP8550408
Not Available
3
Throttle valve pin
AP8550516
Not Available
4
Gas valve
AP8550533
Not Available
5
Idle jet 20
AP8550411
Not Available
6
Main jet 87,5
AP8550410
Not Available
7
Gas valve transmission
AP8550529
Not Available
8
Washer
AP8550478
Not Available
9
Spring
AP8550437
Not Available
10
Piston
AP8550456
Not Available
11
Pickup pump rod
AP8550341
Not Available
12
Cap
AP8550354
Not Available
13
Air adjuster screw
AP8550548
Not Available
14
Automatic starter cpl.
AP8550518
Not Available
15
Starter air jet 135
AP8550409
Not Available
16
Diaphragm cpl.
AP8550432
Not Available
17
Conical pin
AP8550515
Not Available
18
Spring
AP8550349
Not Available
19
Diaphragm cover
AP8550482
Not Available

Find the detailed Carburettor - Components APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
