Air box for APRILIA Mojito from 2000

Air box

1

Carburettor-air box hose

AP8144212

Not Available

2

Hose clamp 40-60 h9

AP8102700

Not Available

3

Intake hose

AP8144213

Not Available

4

Filter housing cover

AP8139868

Not Available

5

Joint

AP8144245

$5,38 Unit Price incl. VAT

6

Filter housing base

AP8139869

Not Available

7

Vis taraud pour plast. Inox

AP8150413

$0,08 Unit Price incl. VAT

8

Vis bride

AP8152285

$0,51 Unit Price incl. VAT

9

Rondelle

AP8150015

$0,16 Unit Price incl. VAT

10

Vis

AP8150403

$0,68 Unit Price incl. VAT

11

Air filter

AP8102965

Not Available

12

Air filter diaphragm

AP8148511

Not Available

13

Air filter cover gasket

AP8144215

Not Available

14

Air filter cover

AP8139871

Not Available

15

Vis

AP8150270

$3,65 Unit Price incl. VAT

16

Tuyau essence 6x10

AP8144038

$32,24 Unit Price incl. VAT

17

Plaquette tuyau frein;

AP8134167

$1,49 Unit Price incl. VAT

18

Collier

AP8101595

$0,32 Unit Price incl. VAT

19

Bouchon de fermeture

AP8120876

$5,38 Unit Price incl. VAT

20

Oil breather pipe

AP8144256

Not Available

21

Collier clic

AP8102786

$1,10 Unit Price incl. VAT

22

Hose clamp

AP8104165

Not Available

23

Clip M6

AP8102376

Not Available

24

"Douille en ""T"""

AP8121075

$3,65 Unit Price incl. VAT

25

"Douille en ""T"""

AP8121728

$6,08 Unit Price incl. VAT

26

Entretoise corps filtre;

AP8134640

$0,84 Unit Price incl. VAT

27

Air box cpl.

AP8148358

Not Available

28

Spring washer 6,4x11x0,5*

AP8150429

Not Available

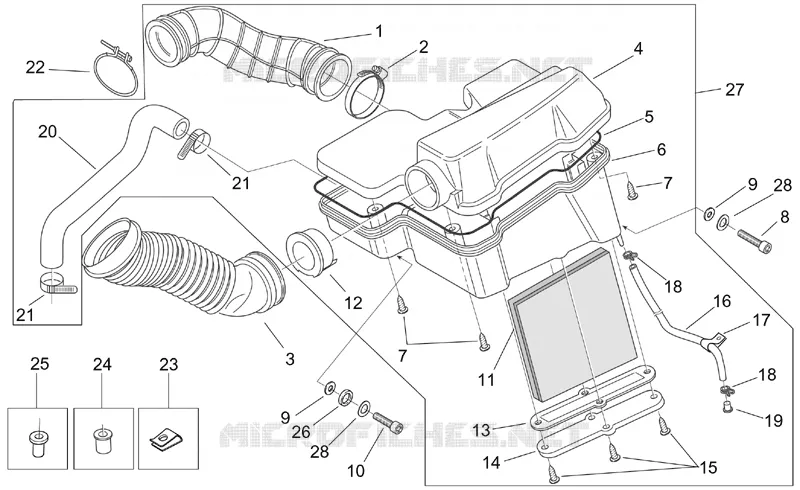

Find the detailed Air box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
