1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Cylinder - Piston
by
Timing system
Cylinder head
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
14
14
1
Cylinder head gasket
AP8550430
Not Available
2
Intake valve
AP8550532
Not Available
3
Exhaust valve
AP8550535
Not Available
4
Locating dowel
AP8550416
Not Available
5
Break washer
AP8550487
Not Available
6
Hex socket screw M6x20
AP8550553
Not Available
7
Cylinder head assy.
AP8550473
Not Available
8
Exhaust pipe stud bolt
AP8550401
Not Available
9
Cup
AP8550493
Not Available
10
Valve gasket ring
AP8550326
Not Available
11
Spring
AP8550434
Not Available
12
Intake cup cpl.
AP8550494
Not Available
13
Cup
AP8550490
Not Available
14
Half-cone
AP8550508
Not Available

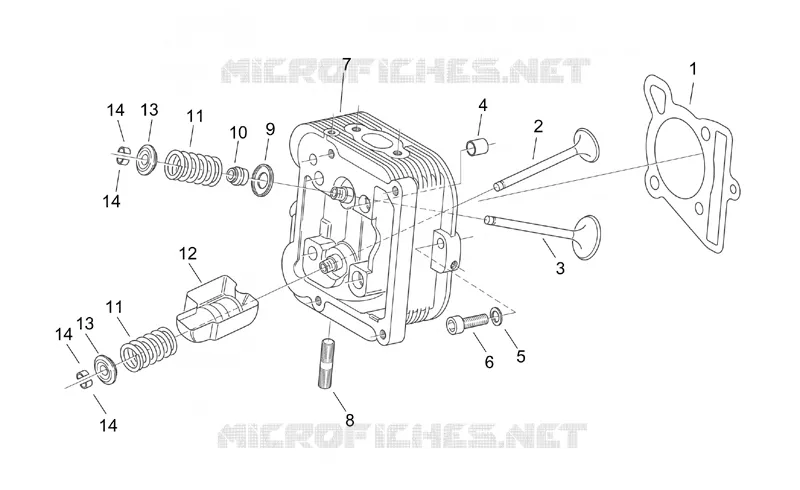

Find the detailed Cylinder head APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
