1
Engine displacement
125
2
Model
MOJITO
3
Year
2000
4
Trim
Mojito
5
Parts Catalog
Transmission final drive
6
Parts Diagram
Parts Catalog
Clutch
by
Drive carter - Kick starter
Transmission final drive
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
1
Transmission cover cpl.
AP8550374
Not Available
2
screw M6x45
AP8550035
Not Available
3
Pin d.9,5 h=15
AP8550107
Not Available
4
Bearing 47x15x13
AP8550089
Not Available
5
Snap ring
AP8550088
Not Available
6
Roller bearing
AP8550385
Not Available
7
Roller cage
AP8550099
Not Available
8
Bush
AP8550347
Not Available
9
Rear wheel axis cpl.
AP8550340
Not Available
10
Gasket ring
AP8550095
Not Available
11
Snap ring
AP8550094
Not Available
12
Bearing 20x47x14
AP8550083
Not Available
13
Thrust washer
AP8550470
Not Available
14
Transmission shaft
AP8550320
Not Available
15
Alloy washer
AP8550304
Not Available
16
Gasket ring
AP8550087
Not Available
17
Driven pulley shaft
AP8550323
Not Available
18
Bearing
AP8550383
Not Available
19
Breather
AP8550015
Not Available
20
Oil level rod cpl.
AP8550343
Not Available
21
O-ring
AP8550334
Not Available
22
Transm.oil unload screw
AP8550361
Not Available

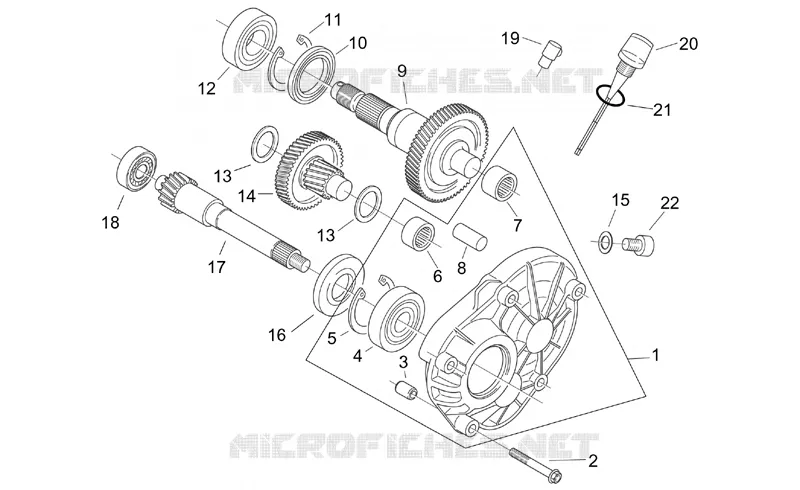

Find the detailed Transmission final drive APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
