1
Engine displacement
50
2
Model
RS
3
Year
1995
4
Trim
RS 50
5
Parts Catalog
Cdi magneto assy
6
Parts Diagram
Parts Catalog
Clutch cover
by
Driven shaft 5 speed gearbox
Cdi magneto assy
1
2
3
4
5
6
7
8
9
10
11
12
1
Starter motor
AP8212367
Not Available
2
Starter motor support strap
AP8206341
Not Available
3
Screw
AP8206274
Not Available
4
Screw
AP8509211
Not Available
5
Hex socket screw M4x10
AP8206716
$3,65 Unit Price incl. VAT
6
Cdi magneto assy
AP8206625
Not Available
7
Flywheel cover, grey
AP8206646
Not Available
8
Nut M10x1,2x15
AP8509891
Not Available
9
Gasket set
AP8206305
Not Available
10
Oil seals - set
AP8206304
Not Available
11
Flywheel housing cover gasket
AP8206293
$11,06 Unit Price incl. VAT
12
Flywheel housing cover gasket
AP8206241
Not Available

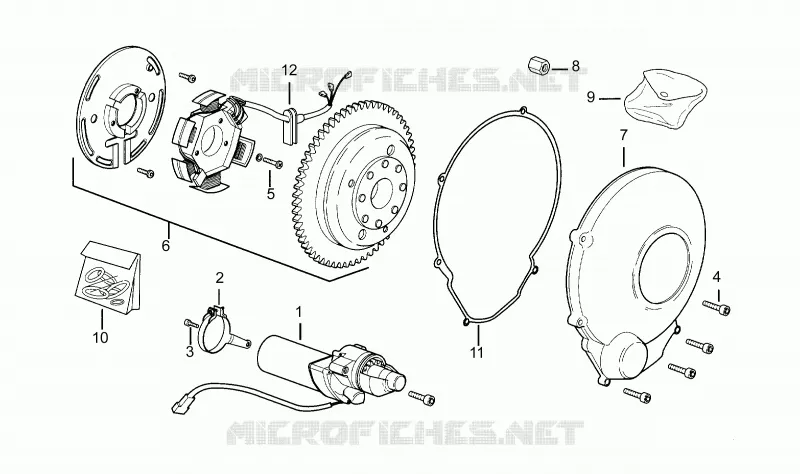

Find the detailed Cdi magneto assy APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
