Parts Catalog
Front fork Marzocchi
6
Parts Diagram
Parts Catalog
Drive shaft
by
Rear wheel
Front fork Marzocchi
1
2
3
4
4
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
30
1
Front fork
AP8203576
Not Available
2
RH sleeve
AP8203582
Not Available
3
LH sleeve
AP8203583
Not Available
4
Sleeve cpl.
AP8203584
Not Available
6
Stem base
AP8203586
Not Available
7
Fork upper plate
AP8203587
Not Available
8
Plug
AP8203579
Not Available
9
Washer
AP8203580
Not Available
10
Bague inférieur fourche
AP8203588
$10,00 Unit Price incl. VAT
11
screw M8x25
AP8203589
Not Available
12
Vis
AP8203590
$3,65 Unit Price incl. VAT
13
Plug
AP8203591
Not Available
14
O-ring
AP8203204
Not Available
15
Spacer
AP8203259
Not Available
16
Spring
AP8203594
Not Available
17
Dust cover
AP8203564
Not Available
18
Bague d'étanchéité
AP8203565
$5,20 Unit Price incl. VAT
19
Stop ring
AP8203566
Not Available
20
Washer
AP8203598
Not Available
21
Anneau support pare-poussière
AP8101272
$3,65 Unit Price incl. VAT
22
Pare-poussière
AP8120211
$1,37 Unit Price incl. VAT
23
Roulement à billes
AP8110025
$10,00 Unit Price incl. VAT
24
Roulement à rouleaux
AP8110024
$15,98 Unit Price incl. VAT
25
Anneau racleur inf.
AP8101271
$3,65 Unit Price incl. VAT
26
Plaque rigidification
AP8103705
$11,69 Unit Price incl. VAT
30
Spacer with spring
AP8203749
Not Available

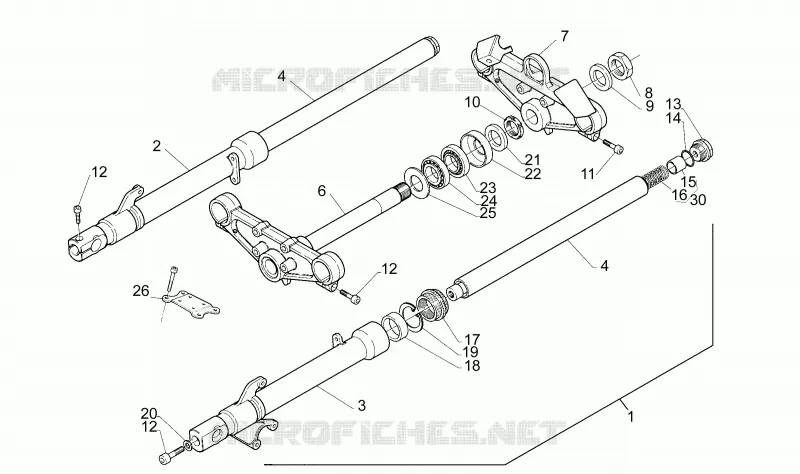

Find the detailed Front fork Marzocchi APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
