1
Engine displacement
50
2
Model
RS
3
Year
1995
4
Trim
RS 50
5
Parts Catalog
Gear box selector
6
Parts Diagram
Parts Catalog
Crankcase
by
Driven shaft - 6 GEARS
Gear box selector
1
2
2
3
4
5
6
7
8
9
10
11
12
13
1
Oil seal D12x22x7
AP8509178
Not Available
2
Circlip
AP8206358
$3,65 Unit Price incl. VAT
3
Sel.fork ret spring
AP8502353
Not Available
4
Washer D12,75x28
AP8502520
$5,20 Unit Price incl. VAT
5
Selector shaft
AP8206437
Not Available
5
Arbre sélecteur
AP8206606
$59,40 Unit Price incl. VAT
5
Selector shaft
AP8206319
Not Available
6
Gear lever return spring
AP8502356
Not Available
7
Blue steel washer D10x16
AP8206269
$3,65 Unit Price incl. VAT
8
Selector spring guide bush
AP8206332
$5,20 Unit Price incl. VAT
9
Tachometer drive spindle
AP8206299
Not Available
10
Gear selector fork pins
AP8501972
Not Available
10
Gear selector fork pins
AP8501980
Not Available
11
Spacer D12,4x14,4
AP8502448
$3,65 Unit Price incl. VAT
12
Blue steel washer D12,3x22
AP8206344
$3,65 Unit Price incl. VAT
13
Blue steel washer D12x17
AP8206270
$5,20 Unit Price incl. VAT

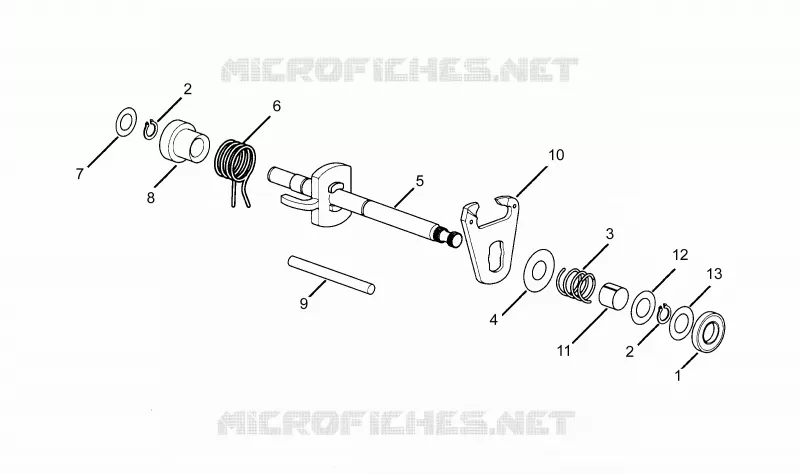

Find the detailed Gear box selector APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
