1
Engine displacement
50
2
Model
RS
3
Year
1995
4
Trim
RS 50
5
Parts Catalog
Driven shaft - 6 GEARS
6
Parts Diagram
Parts Catalog
Gear box selector
by
Cylinder - Cylinder head
Driven shaft - 6 GEARS
1
2
2
3
4
4
4
5
6
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Intermediate gear Z=12
AP8206657
Not Available
2
Outside circlip D20
AP8501477
$3,65 Unit Price incl. VAT
3
Bearing D20x47x14
AP8509135
Not Available
4
Outside circlip D20
AP8507866
Not Available
5
5th wheel gear Z=25
AP8206615
Not Available
6
Blue steel washer D14,5x27
AP8206634
Not Available
7
Roller cage DB14-12
AP8206281
Not Available
8
Outside circlip D14
AP8501478
Not Available
9
1st wheel gear Z=36
AP8206611
Not Available
10
3rd wheel gear Z=29
AP8206613
Not Available
11
Blue steel washer D20,45x28
AP8502501
Not Available
12
4th wheel gear Z=27
AP8206614
Not Available
13
6th wheel gear Z=24
AP8206616
Not Available
14
Secondary gear shaft
AP8206605
Not Available
15
2nd wheel gear Z=33
AP8206612
Not Available
16
Oil seal w/ dust seal
AP8206626
Not Available
17
Rondelle évent.int.
AP8502473
$3,65 Unit Price incl. VAT
18
Nut M7x5,5
AP8502414
Not Available
19
Fork guide pin
AP8206298
$16,44 Unit Price incl. VAT
20
Gear selector fork+pin 5-6 v.ta'
AP8206601
$32,18 Unit Price incl. VAT
21
Gear indicator spring
AP8206261
Not Available
22
Pin retainer
AP8206336
Not Available
23
Ball D9
AP8206283
Not Available
24
Shift cam
AP8206598
Not Available
25
Blue steel washer D10x16
AP8206269
$3,65 Unit Price incl. VAT
26
Fork guide pin w/shank
AP8206619
$7,94 Unit Price incl. VAT
27
Gear selector fork+pin 1-3 v.ta'
AP8206599
Not Available
28
Gear selector fork+pin 2-4 v.ta'
AP8206600
Not Available
29
Secondary shaft cpl. 6 v.ta'
AP8206623
Not Available
30
2nd - 6th gear
AP8206769
Not Available
31
Gear box assy 6 v.ta'
AP8206624
Not Available

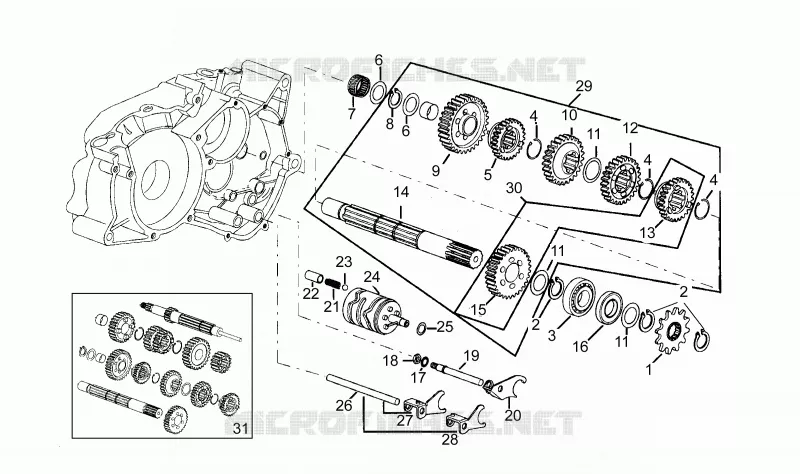

Find the detailed Driven shaft - 6 GEARS APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
