1
Engine displacement
50
2
Model
RS
3
Year
1995
4
Trim
RS 50
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front fork Marzocchi
by
Carburettor
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
Rear wheel, black
AP8208337
Not Available
1
Rear wheel, violet
AP8208361
Not Available
2
Wheel screw
AP8152092
Not Available
3
Chain ring Z=43
AP8207046
Not Available
3
Couronne
AP8207058
$100,08 Unit Price incl. VAT
4
Clip
AP8102375
$0,69 Unit Price incl. VAT
5
Missing description
AP
Not Available
6
Chain ring cover
AP8220204
Not Available
7
Wheel shaft
AP8225229
Not Available
8
Ecrou
AP8152157
$7,59 Unit Price incl. VAT
9
Goupille
AP8201287
$6,30 Unit Price incl. VAT
10
Cam
AP8225214
Not Available
11
Brake hanger plate
AP8234026
Not Available
12
Snap ring
AP8125368
Not Available
13
Bearing
AP8110046
Not Available
14
Spacer
AP8221047
Not Available
15
Brake return spring
AP8221107
Not Available
16
Rear brake disc, stainl. D220
AP8213269
Not Available
17
Snap ring
AP8221051
Not Available
18
Rear master cyl.w/out tank 11
AP8113247
Not Available
19
Master cylinder rod
AP8213127
Not Available
20
Fourchette
AP8101968
$5,09 Unit Price incl. VAT
21
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
22
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
23
Rear brake hose
AP8213195
Not Available
24
Rear brake lever bush
AP8221106
Not Available
25
Stop switch
AP8112300
Not Available
26
Gasket set
AP8113312
Not Available
27
Rear brake caliper
AP8213202
Not Available
28
Pads pair
AP8213051
Not Available
29
Gasket set
AP8213052
Not Available
30
Pin+Brake spring
AP8213053
Not Available
31
Bleeder+cap
AP8213113
Not Available
32
Piston
AP8213054
Not Available
33
Brake caliper cover
AP8213055
Not Available
34
Oil tank
AP8213086
Not Available
35
Rear brake lever
AP8232508
Not Available
36
Connecting link
AP8207019
Not Available
37
Chain cpl conn.link
AP8207017
Not Available
38
Soupape tubeless
AP8101744
$6,30 Unit Price incl. VAT
39
Brake caliper pin
AP8213122
Not Available
40
Clip fourc.b.vitesses
AP8201301
$2,24 Unit Price incl. VAT
41
Vis
AP8152057
$3,65 Unit Price incl. VAT

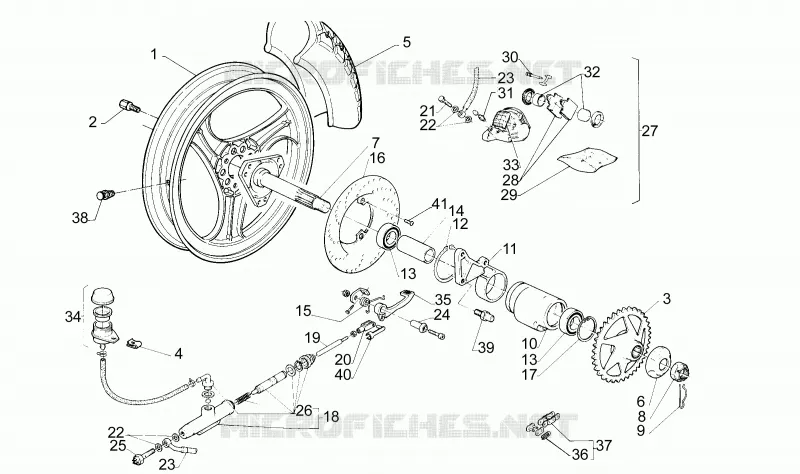

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
