1
Engine displacement
50
2
Model
RS
3
Year
1995
4
Trim
RS 50
5
Parts Catalog
Driven shaft
6
Parts Diagram
Parts Catalog
Carburettor
by
Body
Driven shaft
1
2
3
4
5
6
7
9
10
11
12
13
14
15
15
16
17
18
19
20
20
21
22
23
24
25
26
28
29
30
1
Intermediate gear Z=14
AP8206314
Not Available
1
Intermediate gear Z=13
AP8206355
$20,11 Unit Price incl. VAT
1
Intermediate gear Z=11
AP8206313
Not Available
1
Intermediate gear Z=12
AP8206376
Not Available
2
Outside circlip D17
AP8501484
Not Available
3
Bearing D17x40x12
AP8502626
Not Available
4
Outside circlip D17
AP8501484
Not Available
5
Driven shaft
AP8206318
Not Available
6
Sliding coupling 3-4 spd.
AP8206330
Not Available
7
Outside circlip D18
AP8501471
Not Available
9
Blue steel washer D13x25
AP8206347
Not Available
10
Gear bush 13x20x13,5
AP8206536
Not Available
11
1st wheel gear Z=37
AP8206324
Not Available
12
Blue steel washer D18x30
AP8502500
Not Available
13
Gear 3 v.ta' Z=26
AP8206372
Not Available
14
Gear 2 v.ta' Z=31
AP8206371
Not Available
15
Blue steel washer D17,2x30
AP8502498
Not Available
16
Oil seal D17x35x7
AP8206291
Not Available
17
Rondelle évent.int.
AP8502473
$3,65 Unit Price incl. VAT
18
Nut M7x5,5
AP8502414
Not Available
19
Fork guide pin
AP8206298
$16,44 Unit Price incl. VAT
20
Fork 3-4 speed
AP8206246
Not Available
21
Gear indicator spring
AP8206261
Not Available
22
Pin retainer
AP8206336
Not Available
23
Ball D9
AP8206283
Not Available
24
Shift cam
AP8206234
Not Available
25
Blue steel washer D10x16
AP8206269
$3,65 Unit Price incl. VAT
26
Fork guide pin
AP8502826
Not Available
28
Secondary shaft cpl.
AP8206351
Not Available
29
Gear box assy
AP8206373
Not Available
30
Bush
AP8206333
Not Available

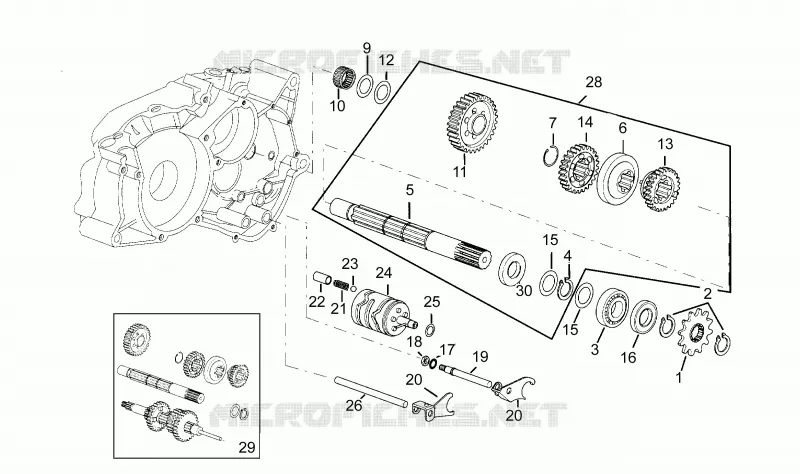

Find the detailed Driven shaft APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
