1
Engine displacement
1000
2
Model
TUONO
3
Year
2003
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Acc. - Performance parts II
by
Ignition unit
Engine
1
2
3
4
5
6
7
7
8
8
9
9
10
10
10
10
11
12
12
12
12
12
13
14
1
Engine 990
AP8106986
Not Available
1
Engine 990
AP8106980
Not Available
1
Engine 990
AP8106967
Not Available
1
Engine 990
AP8106979
Not Available
1
Engine
AP8176055
Not Available
1
Engine
AP8176052
Not Available
1
Engine
AP8176054
Not Available
1
Engine
AP8176053
Not Available
2
Carter pignon, gris
AP8106968
$7,23 Unit Price incl. VAT
3
Gear lever
AP8106379
Not Available
4
Caoutchouc pour levier
AP8120912
$1,42 Unit Price incl. VAT
5
Tige manette frein
AP8121221
$17,15 Unit Price incl. VAT
6
Bague seeger
AP8150462
$0,67 Unit Price incl. VAT
7
Spacer D6x8x13,5*
AP8221046
$3,65 Unit Price incl. VAT
8
Vis
AP8150220
$0,17 Unit Price incl. VAT
9
Vis
AP8150044
$3,65 Unit Price incl. VAT
9
Screw M6x20
AP8152426
Not Available
10
Tuyau huile
AP8144015
$29,51 Unit Price incl. VAT
11
"Raccord en ""Y"""
AP8120116
$3,33 Unit Price incl. VAT
12
Collier clic
AP8120446
$0,75 Unit Price incl. VAT
13
Soupape de retenue
AP8104251
$15,98 Unit Price incl. VAT
14
Gearbox lever ERGAL
AP8796530
Not Available

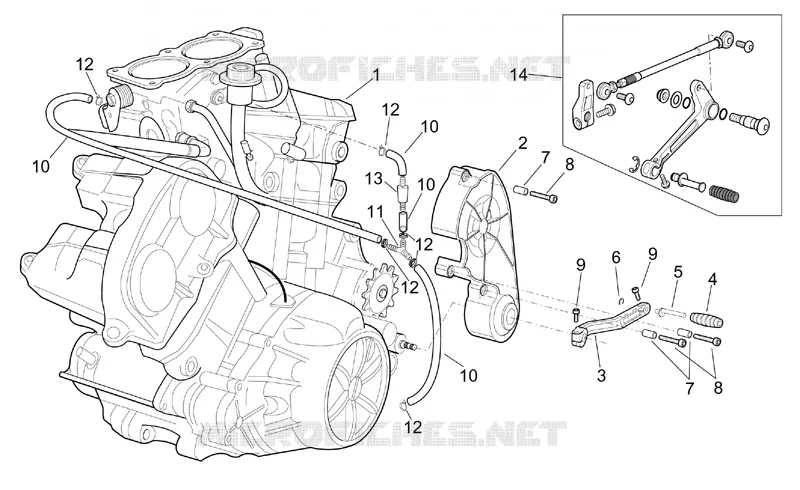

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
